Crouse-Hinds Crouse-Hinds LL50M


Description

Industry Description

1/2 FORM 5 LL CONDUIT BODY MALLEABLE

Modified Industry Description

1/2 IN MALLEABLE IRON FORM 5 LL CONDUIT BODY

AD Description

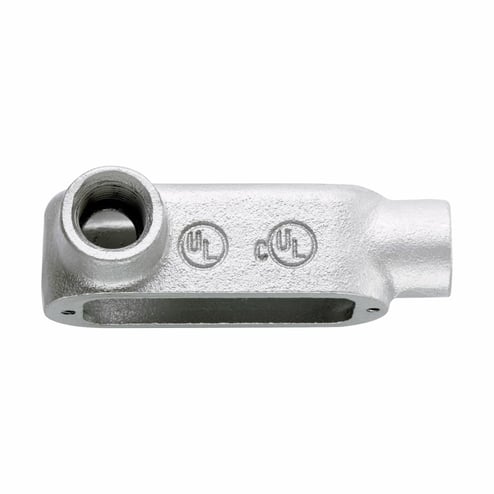

Crouse-Hinds Condulet® LL50M Type LL Conduit Outlet Body, 1/2 in Hub, 5, 4.5 cu-in, Malleable Iron, Electro-Galvanized/Aluminum Acrylic Painted

Vendor Description

One hundred years after the introduction of the Condulet®, EATON remains the leader in conduit outlet bodies with its Crouse-Hinds series. The line has grown to six families manufactured in a variety of materials, and bodies are offered in ten different shapes to provide the most flexible offering on the market. In addition, the introduction of integrally gasketed Condulet® covers saves customers inventory and labor costs.

Specifications

Application
Rigid/IMC Conduit
Brand Name
Crouse-Hinds
Configuration
LL
Country of Origin
IN
Finish
Electro-Galvanized/Aluminum Acrylic Painted
Form
5
Hub_Size
1/2
Material
Malleable Iron
Special Features

  • Act as pull outlets for conductors being installed
  • Domed sheet steel electro-galvanized covers provide additional cubic capacity
  • Interchangeable with Appleton® form 35 and O-Z/Gedney® malleable iron conduit outlet bodies
  • Left side access opening
  • Malleable iron construction provides high impact resistance and durability
  • New integral gasket sheet steel covers - NEMA 4 rated
  • Provide access to conductors for maintenance and future system changes
  • Provide taps for branch conduit runs, make 90 deg bends in conduit runs
  • Smooth and rounded integral bushings for protection of wire insulation
  • Solid neoprene natural finish gaskets may be converted to open type by pulling out perforated center section
  • Stainless steel self-retaining cover screws
  • Zinc electroplate and aluminum acrylic paint finish for corrosion resistance and durability
Standard
UL 514B, CSA C22.2, CUL
Sub_Brand
Eaton Crouse-Hinds
Trade_Size
1/2
Type
Type LL
Width_2
7.7000
