Hubbell Hubbell HBL13R92D
Hubbell HBL13R92D
Kirby Risk #: 2059743
UPC: 78358520270, 783585202709, 00783585202709
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Toggle Switches, Motor Disconnects, Double Pole, 30A600V AC, Back and Side Wired, Aluminum, NEMA 3R Enclosure with Switch
Modified Industry Description
30A 600V 2P DISC SW W/NEMA 3R
AD Description

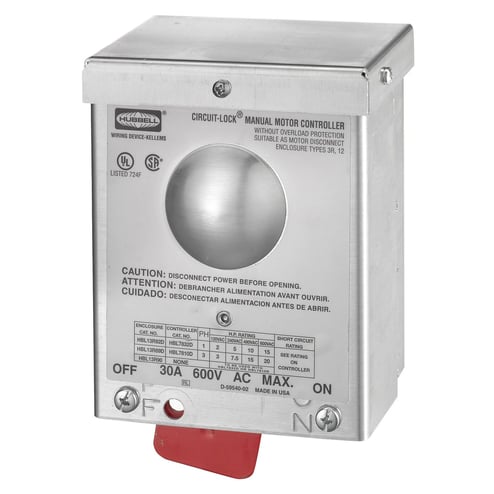

Wiring Device-Kellems CIRCUIT-LOCK® HBL13R92D Metallic Enclosed AC Motor Disconnect Switch With Switch, 600 VAC, 30 A, 18000 W
Specifications
| Actuator |
Toggle
|
|---|---|
| Amperage Rating |
30
|
| Application |
Motor Starting w/o Overload Protection
|
| Brand Name |
Hubbell
|
| Connection |
Back/Side Wired Pressure Screw
|
| Country of Origin |
US
|
| Enclosure |
NEMA 3R
|
| Environmental_Conditions |
-40 to 75 deg C Temperature
|
| Material |
Aluminum
|
| Mounting |
Threaded
|
| Number_Of_Poles |
2
|
| Operating_Cycles |
10000
|
| Operating_Temperature |
Minimum Continuous -40 Deg C without Impact
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL508
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Metallic Enclosed
|
| Voltage Rating |
600
|
| Width_2 |
8.3000
|
| Width_3 |
8.3000
|
