Hoffman Hoffman Q202013PCEMC


Description

Industry Description

QLine I, EMC, Type 4X, 200x200x123mm, Polycarbonate

Modified Industry Description

J BOX TYPE 4X, SCREW CVR, EMC

AD Description

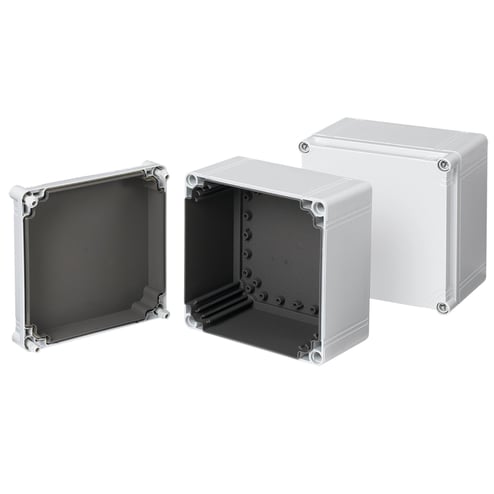

Hoffman QLINE™ Q202013PCEMC Q41EM Type EMC Junction Box, 200 mm L x 200 mm W x 123 mm D, Screw/Solid Cover, NEMA 4X/IP66 NEMA Rating, Polycarbonate

Vendor Description

The largest-size enclosures in the QLine EMC series, the screw-cover QLine I protects larger controls from electromagnetic interference in corrosive environments.

Specifications

Application
The largest-size enclosures in the QLINE™ EMC series, the screw-cover QLINE I protects larger controls from electromagnetic interference in corrosive environments.
Brand Name
Hoffman
Color
Light Gray
Country of Origin
EE
Cover_Type
Solid/Screw
Material
Polycarbonate
NEMA_Rating
NEMA 4X/IP66
Series
Q41EM
Size
200 X 200 mm
Special Features

  • Body is impact-resistant polycarbonate
  • Easily removable covers attached to body with strong, durable polyamide cross-point cover screws
  • EMC conductive coating in base and cover
  • Gasket of silver/silicone
  • Molded internal pads for mounting optional panels, rails and other components
  • Molded internal rails for mounting adjustable depth panel kit
  • Mounting holes molded directly under cover screws
  • Screws provided for mounting optional panel
Standard
UL 508A Listed, Type 4, 4X, 12, 13, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 4, 4X, 12, 13, File No. E61997, Enclosure flammability evaluated per UL 508A, NEMA/EEMAC Type 4, 4X, 12, 13, IEC 60529, IP66
Sub_Brand
Hoffman
Type
Type EMC
