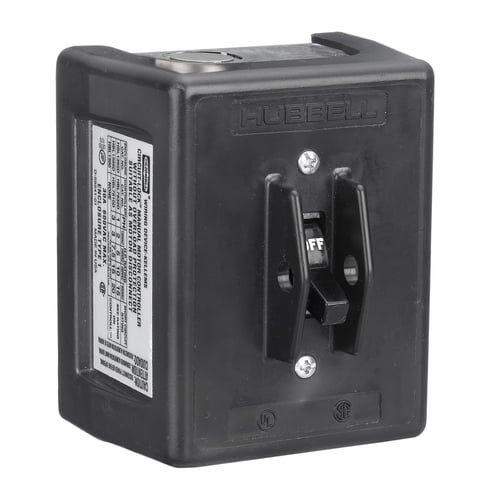

Hubbell Hubbell HBL1392D
Hubbell HBL1392D
Kirby Risk #: 2052334
UPC: 78358520263, 783585202631, 00783585202631
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Toggle Switches, Motor Disconnects, Double Pole, 30A600V AC, Back and Side Wired, Black, In NEMA 1 Non Metallic Enclosure
Modified Industry Description
30A 600V 2P DISC SW W/NEMA 1 PLAS
AD Description
Wiring Device-Kellems CIRCUIT-LOCK® HBL1392D Non-Metallic Enclosed AC Motor Disconnect Switch With Switch, 600 VAC, 30 A, 18000 W
Specifications
| Actuator |
Toggle
|
|---|---|
| Amperage Rating |
30
|
| Application |
Motor Starting w/o Overload Protection
|
| Brand Name |
Hubbell
|
| Connection |
Back/Side Wired Pressure Screw
|
| Country of Origin |
US
|
| Enclosure |
NEMA 1
|
| Environmental_Conditions |
-40 to 75 deg C Temperature
|
| Material |
Thermoplastic
|
| Mounting |
Threaded
|
| Number_Of_Poles |
2
|
| Operating_Cycles |
10000
|
| Operating_Temperature |
Minimum Continuous -40 Deg C without Impact
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL508
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Non-Metallic Enclosed
|
| Voltage Rating |
600
|
| Width_2 |
11.2000
|
| Width_3 |
11.2000
|
