Thomas & Betts Thomas & Betts TY3X3NPW6


Description

Modified Industry Description

3 X 3 IN WHITE PVC WIRING DUCT, NARROW SLOT

AD Description

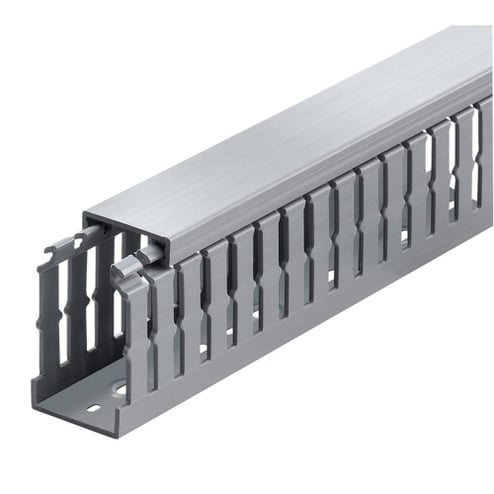

Ty-Duct® TY3X3NPW6 Slotted Wall Wiring Duct, Narrow Slot, 3 in W x 3 in D, PVC

Vendor Description

Thomas & Betts innovative new Ty-Duct® products offer a total solution for routing and concealing wiring in control panels. Many different sizes are available to accommodate anything from the smallest wallmount panel to the larger integrated systems! Here are some of the impressive features incorporated into all of our wiring duct solutions.

Specifications

Adhesive_Backed
False
Brand Name
Thomas & Betts
Color
White
Country of Origin
US
Cover
TY3CPW6
Material
PVC
Mounting_Holes
True
Slot_Style
Narrow Slot
Special Features

  • Dual score lines are designed to yield clean breakoffs at the base of the slot and the duct
  • Economical wiring duct material
  • External dimension: 3-1/4 in W x 3.14 in D
  • Flush cover attaches flush with sidewall for finished look
  • Non-slip cover does not slide easily and resists vibration
  • Rounded edges keep hands and wires free of abrasion
  • Smaller, higher number of fingers for more concise harnessing
  • UL flammability rating of V-0
  • UL94 recognized for use in temperatures up to 50 deg C
  • V-Shaped slot lead-in enables easier and faster wire installation
  • Versatile North American and DIN Standard mounding holes enable same duct for multiple applications
Sub_Brand
Ty-Duct
Type
Wiring Duct
Width_2
9.5000
