Siemens Siemens JXD62B250
Siemens JXD62B250
Kirby Risk #: 2048095
UPC: 78364321300, 783643213005, 00783643213005
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

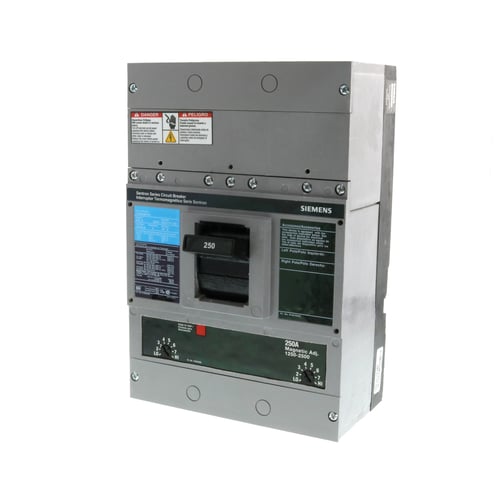

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY. 250A 2-POLE (25KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.
Modified Industry Description
BREAKER JD 2P 250A 600V 25KA FX NL
AD Description
Sentron™ Speedfax™ JXD62B250 Low Voltage Molded Case Circuit Breaker, 600 VAC/250 VDC, 250 A, 25 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Vendor Description
SiemensSentronSeriesCircuit Breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens SentronSeries circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
250
|
| Auxiliary_Contacts |
N/A
|
| Brand Name |
Siemens
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
JD
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Material |
N/A
|
| Number_Of_Poles |
2
|
| Operating_Temperature |
40C
|
| Phase |
1-Phase
|
| Poles |
2
|
| Special Features |
|
| Standard |
UL/HACR
|
| Sub_Brand |
Siemens
|
| Trip_range |
1250 to 2500
|
| Trip_Type |
Thermal Magnetic
|
| Type |
Low Voltage
|
| Voltage Rating |
600
|
| Width_2 |
40.0000
|
