Hubbell Hubbell HBL3721


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Male Plug, 20A 347V AC, 2-Pole 3-Wire Grounding, L24-20P, ScrewTerminal, Black and White

Modified Industry Description

LKG PLUG, 20A 2P3W, 277V, L24-20P,

AD Description

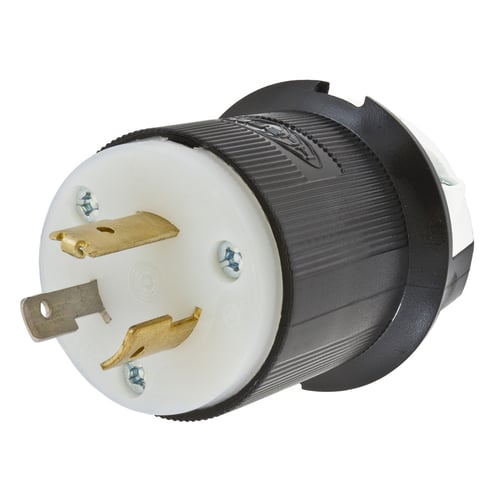

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL3721 Grounding Locking Plug, 347 VAC, 20 A, 2 Poles, 3 Wires, Black/White

Specifications

Amperage Rating
20
Application
Extra Heavy Duty Industrial
Brand Name
Hubbell
Color
Black/White
Connection
Pressure Screw Terminal
Conductor Size
#12AWG to #10AWG
Cord_Type
All Listed Portables
Country of Origin
PR
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Industrial
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
NEMA L24-20P
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized
Special Features

  • #10-32 brass (Phillips/slotted/Robertson) terminal screws
  • 10 to 8 AWG wire
  • 16 to 8 AWG stranded copper wire terminal accommodation
  • Brass blades
  • Certified for current interrupting at full rated current interrupting
  • Clear polycarbonate terminal retainer
  • Clear, funnel shaped wire entry for ease of termination
  • Cold rolled steel nickel plated terminal clamp and steel nickel plated assembly screws
  • Indoor dry unless protected by additional means
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Terminals identified in accordance with UL 498
  • Withstands 2000 VAC dielectric voltage
Standard
NEMA WD1 and WD5, UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Grounding
Voltage Rating
347
Wattage
6.940k
