Hubbell Hubbell HXJ5EOR


Description

Industry Description

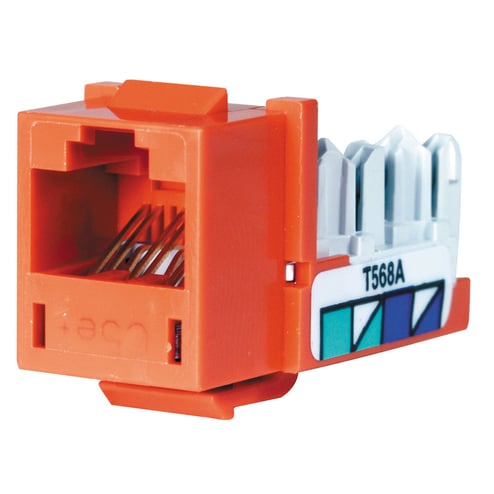

Hubbell Premise Wiring Products, Telephone/Data, Jack, XCELERATOR, Cat5e, Orange

Modified Industry Description

ORANGE CAT5E MODULE JACK, 8 POSITION, 8 WIRE

AD Description

PREMISE WIRING XCELERATOR™ SPEEDGAIN® HXJ5EOR 8-Position Standard Universal A/B Jack, Cat 5e Module, Keystone Mount, 1 Port, Thermoplastic, Orange

Vendor Description

SPEEDGAIN® Cat 5e modular jacks (XJ5e) deliver industry unmatched component performance. The XJ5e is the first modular jack to undergo extreme DTE power testing to 4X the standard handling continuous DTE power, exceeding the IEEE PoE standard without failure or any substantial increase in temperature. The XJ5e supports network convergence protocols by delivering maximum bandwidth and extended reliability for all LAN, multimedia and PoE (Power over Ethernet) applications such as VoIP and IP-Video. The QuickLace™ termination process combined with the exclusive 1-punch tool delivers the fastest termination in the structured cabling industry. The innovative combination reduces termination time by 75% and provides a consistent termination every time. The XJ5e easily installs into all Hubbell iSTATION™ products, including rear loading plates and front loading modules and frames. SPEEDGAIN® jacks can be used in multimedia configurations with our snap fit (SF) connectors customizing all workstations, consolidation points and telecommunication closets.

Specifications

Application
Telephone and Data Distribution Jack
Brand Name
Hubbell
Color
Orange
Connection
Insulation Displacement
Contact_Resistance
100 Ohm
Country of Origin
US
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Mounting
Keystone
Number Of Conductors
8
Number_of_Positions
8
Size
Standard Sized Product
Special Features

  • 100 Ohm contact resistance
  • 15 different colors aids identification of multiple applications
  • 2000+ mating cycles with FCC compliant 8-position plug
  • 3+Gbs of bandwidth
  • 8-positions and 4-contacts
  • Backwards compatible to Cat 5 and 3
  • Beryllium copper with precious metal plating with nickel under plating nose contacts
  • Center balanced to Cat 5e plug specifications
  • Compatible with standard 110 termination tools
  • Exceeds component requirements by a minimum of 3 dB
  • Exceeds IEEE 802.3af DTE power specification to 4X the standard
  • Exclusive 1-Punch termination tool and QuickLace combination
  • For use with Hubbell® series wallplates
  • High impact thermoplastic (UL94V-0) housing, lexan (UL94V-0) stuffer cap, polypropylene dust cover
  • IDC pair splitting tower allows for minimum disruption to cable twist
  • Labor savings exclusive 1-Punch termination reduces termination time by 75%
  • Mating cycles exceed industry standards by 2 times
  • Mating cycles exceed industry standards by two times
  • One punch termination reduces termination time by 75%
  • Phosphor bronze with 100 micro in tin plating over nickel under plating IDC contacts
  • Positive PSACR beyond 190 MHz
  • Stuffer cap ensures secure strain relief and positive snap latching
  • Termination towers provide easy pair splitting, simple lacing and fast punch down
  • Universal Hubbell® keystone design fits into all Hubbell® iSTATION™ and delivery Plus products
  • Universal wiring two distinct labels eliminates wiring confusion, T568B or T568A
  • Withstands 1000 VAC RMS, 1414 VDC voltage
Standard
ANSI/TIA-568-C.2
Sub_Brand
Hubbell Premise Wiring
Temperature_Rating
Max Continuous- 75?° C, Minimum- -40?° C Without Impact
Type
Data Jack
Width_2
5.5000
Width_3
16.1250
Width_4
16.6000
Withstand_Voltage
1000V RMS, 1414V DC
