Thomas & Betts Thomas & Betts 54448
Thomas & Betts 54448
Kirby Risk #: 2043063
UPC: 78621054448, 786210544489, 30786210544480
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

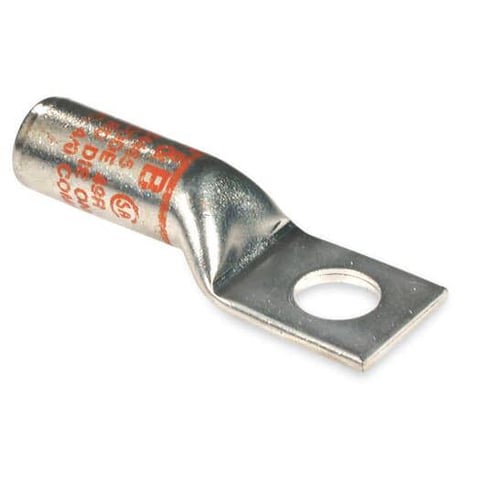

Copper One-Hole High Voltage Lug, Long Barrel, Blind End, Max 15kV, Wire Size #1 AWG, 3/8 Inch Bolt Size, Tin Plated, Die Code 37R, Die Color Code Green Rounding
Modified Industry Description
T&B METHOD LUG
AD Description
Color-Keyed® 54448 54400 1-Hole High Voltage Compression Connector Lug, 1 AWG Copper Conductor, Die Code: 37R, 3/8 in Stud, Copper
Vendor Description
These Color-Keyed® connectors are recommended for up to 15 kV applications. Installed with standard T&B® Cat. No. TBM15I, 13100A, TBM14M hydraulic compression tools with special rounding dies. The compression forms the connector and conductor into a solid mass to provide an optimum electrical bond between connector and conductor. The rounding die overlapped compressions provide a smooth round surface. This, combined with the tapered barrel ends, addresses the controlling of potentially damaging electrical stresses of high voltages.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Cable_Size |
#1 AWG
|
| Color |
Green
|
| Conductor Material |
Copper
|
| Conductor Size |
1
|
| Country of Origin |
MX
|
| Finish |
Tin Plated
|
| Insulation |
None
|
| Material |
Copper
|
| Number_Of_Holes |
1
|
| Package_Quantity |
20
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
3/8
|
| Sub_Brand |
Color-Keyed
|
| Temperature_Rating |
105
|
| Tongue_Angle |
Straight
|
| Type |
1-Hole High Voltage
|
| Voltage Rating |
600 VAC to 15 kV
|
