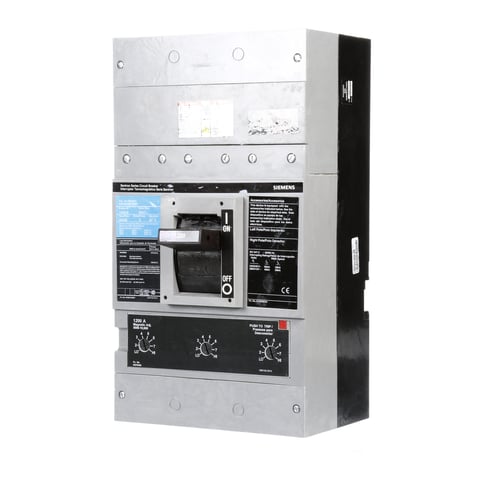

Siemens Siemens NXD63B120L
Siemens NXD63B120L
Kirby Risk #: 2035197
UPC: 78364320632, 783643206328, 00783643206328
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER ND FRAME WITH STANDARD BREAKING CAPACITY. 1200A 3-POLE (25KAIC AT 600V) (50KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA4N8500) WIRE RANGE 250 - 500KCMIL (CU/AL). DIMENSIONS (W x H x D) IN 9.00 x 16.0 x 6.00.
Modified Industry Description
BRKR ND6 3P 600V 1200A FX LUG
AD Description
Sentron™ NXD63B120L Type NXD6 Low Voltage Molded Case Circuit Breaker With Lugs, 600 VAC/500 VDC, 200 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic/LI Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
200
|
| Application |
Standard 40C Breaker
|
| Connection |
Line/Load lugs installed
|
| Country of Origin |
MX
|
| Dimensions |
16 in H x 9 in W x 6 in D
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
ND
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Length1 |
19.0000
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3-Phase
|
| Special Features |
|
| Standard |
UL/HACR
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
40
|
| Type |
Type NXD6 Low Voltage
|
| Voltage Rating |
600 VAC/500 VDC
|
