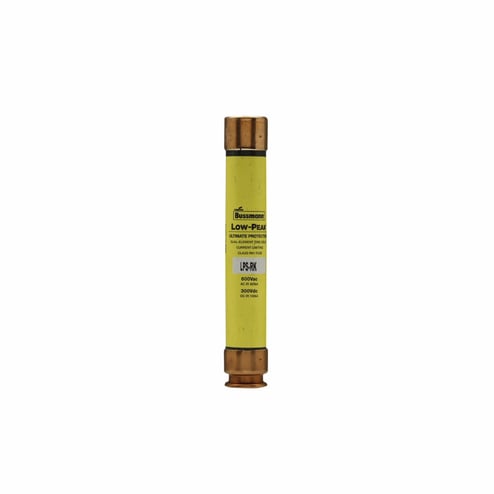

Bussmann Bussmann LPS-RK-1/10SP


Description

Industry Description

1/10A 600V Class RK1 Low Peak Dual Element, Time Delay Fuse

AD Description

Bussmann Low-Peak® LPS-RK-1/10SP LPS Low Voltage Current Limiting Time Delay Fuse, 0.1 A, 600 VAC/300 VDC, 100/300 kA Interrupt, RK1 Class, Cartridge Body

Specifications

Amperage Rating
0.10A
Application
Ind Facilities & Factories - Facility: Safety and Security Systems
Brand Name
Bussmann
Country of Origin
MX
Interrupt_Rating
300 kAIC at 600 Vac100 kAIC at 300 Vdc
Package_Quantity
1.000
Special Features

  • 10 s at 500% of rated current response time
  • 300 kA at 600 VAC, 100 kA at 300 VDC interrupt rating
  • 300 kA rms symmetrical interrupt rating provides adequate ratings without obsolescence for all electrical systems, big or small, allows for simple, worry free installation in virtually any application
  • Consistent 2:1 ampacity ratios for all Low-Peak® fuses make selective co-ordination easy
  • Current limitation protects down stream components against damaging thermal and magnetic effects of short circuit currents
  • Insulated end caps reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing
  • Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers
  • Protects against 1-phase motor damage
  • Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak® fuses
  • Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current limitation and selective co-ordination ratio of 2:1 prevents widespread blackouts
  • Time delay permits 130% FLA sizing for backup motor protection
Standard
CE Marked
Sub_Brand
Bussmann Series
Type
Fuse
Voltage Rating
600//300
