Burndy Burndy YA30L24


Description

Industry Description

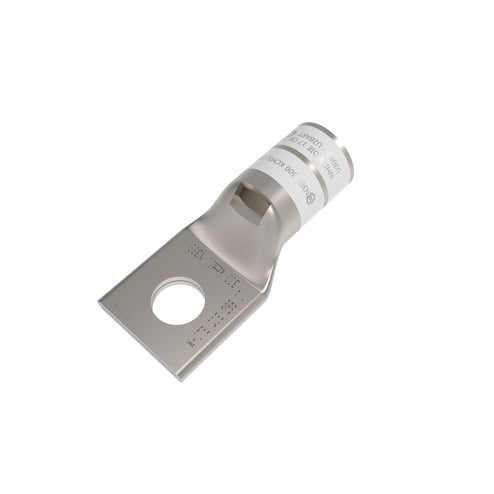

Copper Compression Lug, 1 Hole w/ Inspection Window, 300 kcmil, 3/8" Stud, Short Barrel, Tin Plated.

Modified Industry Description

CU COMPR LUG 1 HOLE 300 AWG 3/8 STUD SHORT

AD Description

BURNDY® HYLUG YA30L24 YA-L 1-Hole Compression Lug With Inspection Window, 300 kcmil Stranded Copper Conductor, Die Code: 17, 3/8 in Stud, Copper

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Specifications

Application
For Code Conductor
Brand Name
Burndy
Cable_Size
300 KCMIL, 150 SQ-MM For Class 2 Conductor
Color
White
Conductor Material
Copper
Conductor Size
300
Country of Origin
US
Material
Copper
Number_Of_Holes
1
Package_Quantity
1
Special Features

  • 300 kcmil stranded conductor
  • Conductor size of 150 sq-mm for class 2 conductor
  • For die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, (2) W30VT die, hydraulic: BCT500HS, Y500CTHS tool, (2) W30VT, W30RT die, Y35, Y39, Y750, PAT750 tool, (2) U30RT, U28ART die, Y46 tool, (2) U30RT, U28ART die With PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool
Standard
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
Stud_Size
3/8
Sub_Brand
Burndy
Temperature_Rating
90
Type
1-Hole
Voltage Rating
600 VAC to 35 kV
