Hoffman Hoffman Q1286PCEMC


Description

Industry Description

QLine D, EMC, Type 4X, 120x80x55mm, Polycarbonate

Modified Industry Description

J BOX TYPE 4X, SCREW CVR, EMC

AD Description

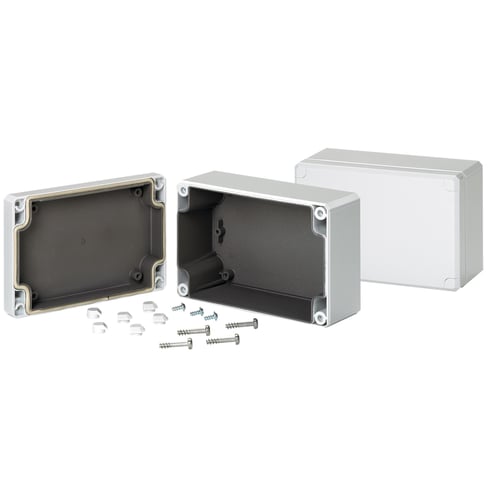

Hoffman QLINE™ Q1286PCEMC Q41EM Type EMC Junction Box, 120 mm L x 80 mm W x 55 mm D, Screw/Solid Cover, NEMA 4X/IP66 NEMA Rating, Polycarbonate

Vendor Description

QLine D polycarbonate EMC enclosures have contoured bodies and flush cover screws for an attractive, contemporary appearance while also providing EMC protection in corrosive environments.

Specifications

Application
QLINE™ D polycarbonate EMC enclosures have contoured bodies and flush cover screws for an attractive, contemporary appearance while also providing EMC protection in corrosive environments.
Brand Name
Hoffman
Color
Light Gray
Country of Origin
EE
Cover_Type
Solid/Screw
Cubic_Capacity
25 cubic in
Material
Polycarbonate
NEMA_Rating
NEMA 4X/IP66
Series
Q41EM
Size
120 X 80 mm
Special Features

  • Body is impact-resistant polycarbonate
  • Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
  • Cross point captivated cover screws are stainless steel
  • EMC conductive coating in base and cover
  • Gasket of silver/silicone
  • Molded internal pads for mounting optional panels, rails and other components
  • Mounting holes molded directly under cover screws
  • Mounting tracks along body side walls and bosses on cover for PC card installation
  • Screws provided for mounting optional panel
Standard
UL 508A Listed, Type 4, 4X, 12, 13, cUL Listed per CSA C22.2 No 94, Type 4, 4X, 12, 13, File No. E61997, Enclosure flammability evaluated per UL 508A, NEMA/EEMAC Type 4, 4X, 12, 13, IEC 60529, IP66
Sub_Brand
Hoffman
Type
Type EMC
