Hubbell Hubbell H`BLMRR


Description

Industry Description

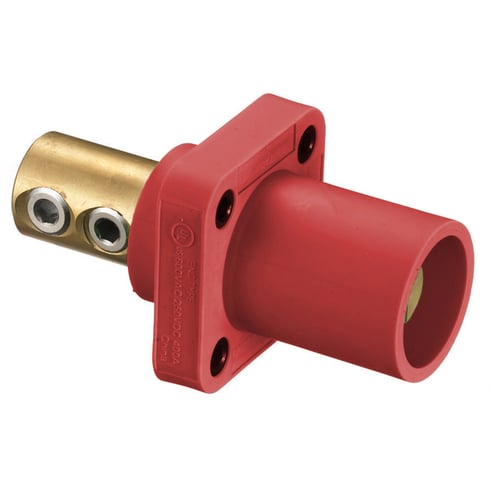

Hubbell Wiring Device Kellems, Heavy Duty Products, Single Pole Devices,Industrial Grade, Male, Receptacle, 300/400A 250V DC/600V AC, SingleConductor, Set Screw, Red

Modified Industry Description

300 & 400 MALE REC DOUBLE SET RED

AD Description

Wiring Device-Kellems HBLMRR Male Heavy Duty Single Pole Receptacle, 600 VAC/250 VDC, 400 A, 4 to 4/0 AWG Wire, Screw, NEMA 3R/4X/12K

Vendor Description

Hubbell® Wiring Device-Kellems offers a full line of innovative, high quality, series 15 and series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Specifications

Amperage Rating
400
Application
High Ampacity Connections
Brand Name
Hubbell
Color
Red
Connection
Screw Terminals
Conductor Size
#4 AWG to #4/0 AWG
Country of Origin
CN
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Rating
NEMA 3R/4X/12K
Number_Of_Poles
1
Phase
1
Size
Standard Sized Product
Special Features

  • 1-phase
  • Nylon retaining screw
  • Thermoplastic elastomer base compound
  • UL 1691 draft standard for single pin and sleeve devices intended for theatre, stage and studio applications
  • UL 498 for attachment plugs and receptacles
Standard
UL 498 and UL 1691
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Male Heavy Duty
Voltage Rating
600 VAC/250 VDC
Wattage
240,000
