Burndy Burndy YA31L2NT38
Burndy YA31L2NT38
Kirby Risk #: 2018992
UPC: 78181002038, 781810020388, 00781810020388
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description
Flex Conductor Standard Barrel Narrow, 350 kcmil, 3/8 in, 3.51 in L.
AD Description

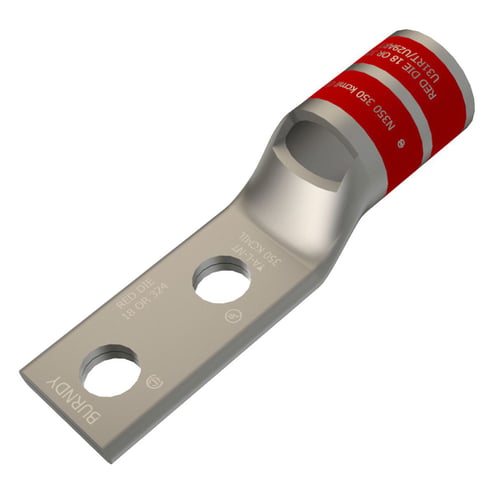

BURNDY® HYLUG YA31L2NT38 YA-L-2NT 2-Hole Compression Lug, 350 kcmil Stranded Copper Conductor, Die Code: 18, 3/8 in Stud, Copper
Vendor Description
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Specifications
| Application |
For Code Conductor
|
|---|---|
| Country of Origin |
US
|
| Length1 |
3.5100
|
| Material |
Copper
|
| Special Features |
|
| Standard |
UL 486A-486B
|
| Sub_Brand |
HYLUG
|
| Type |
YA-L-2NT, Code Conductor Standard Barrel Narrow Tongue
|
| Voltage Rating |
35,000
|
