Burndy Burndy YA34LB
Burndy YA34LB
Kirby Risk #: 1996731
UPC: 78181050576, 00781810505762, 781810505762
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

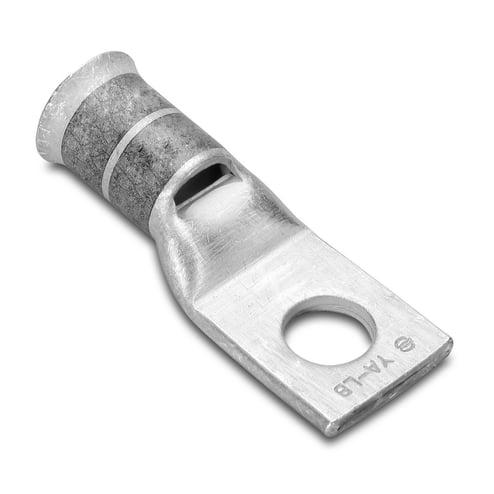

Copper Compression Lug, 1 Hole w/ Inspection Window, 350 Flex/373.7 Flex/400 Flex, 5/8" Stud, Short Barrel, Belled End, Tin Plated.
Modified Industry Description
CU COMPR LUG 1 HOLE 350 AWG 5/8 STUD SHORT
AD Description
BURNDY® HYLUG YA34LB YA-LB 1-Hole Compression Lug With Inspection Window, 500 kcmil Stranded Copper Conductor, Die Code: 20/1027, 5/8 in Stud, Copper
Vendor Description
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Specifications
| Application |
For Flex Conductor
|
|---|---|
| Brand Name |
Burndy
|
| Cable_Size |
Flexible Copper: 350, 373.7, 400 KCMIL, Welding Cable, Class M (34 STR): 350 KCMIL (8806 Strands), Locomotive: 373.7 KCMIL (925/24 Strands), Battery Cable, Class K (30 STR): 350 KCMIL (3458 Strands), Class I (24 STR): 400 KCMIL (980 Strands), G: 400 KCMIL (259 Strands), H: 400 KCMIL (427 Strands)
|
| Color |
Brown
|
| Conductor Material |
Copper
|
| Conductor Size |
500
|
| Country of Origin |
US
|
| Material |
Copper
|
| Number_Of_Holes |
1
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
|
| Stud_Size |
5/8
|
| Sub_Brand |
Burndy
|
| Temperature_Rating |
90
|
| Type |
1-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
