Hubbell Hubbell HBLFRBL


Description

Industry Description

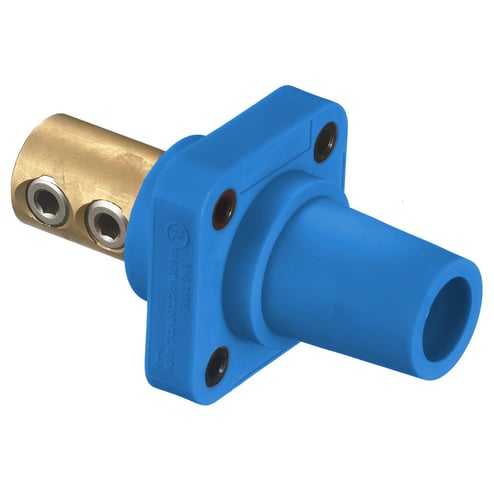

Hubbell Wiring Device Kellems, Heavy Duty Products, Single Pole Devices,Industrial Grade, Female, Receptacle, 300/400A 250V DC/600V AC, SingleConductor, Set Screw, Blue

Modified Industry Description

300/400A 600/250V FEMALE BLUE

AD Description

Wiring Device-Kellems HBLFRBL 16 Series Female Heavy Duty Industrial Grade Standard Single Pole Receptacle, 600 VAC/250 VDC, 400 A, 4 to 4/0 AWG Wire, Screw Connection, NEMA 3R/4X/12 NEMA Rating

Vendor Description

Hubbell Wiring Device-Kellems offers a full line of innovative, high quality, series 15 and series 16 1-pole plugs, receptacles and accessories for the most demanding environments. 1-pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. 1-pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Specifications

Amperage Rating
400
Application
High Ampacity Connections
Brand Name
Hubbell
Color
Blue
Connection
Screw Terminals
Conductor Size
#4 AWG to #4/0 AWG
Country of Origin
CN
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Elastomer/Composite
Mounting
Threaded Thru-Hole
NEMA_Rating
Non-NEMA
Number_Of_Poles
1
Number_Of_Wires
1
Phase
1
Size
Standard Sized Product
Special Features

  • Highly conductive brass contacts improve performance and extend life
  • Insulgrip® body design
  • Non-metallic safety retaining screw
  • Turn and lock symbol indicates devices are properly connected
Standard
UL 498 for attachment plugs and receptacles
  • UL 1691 draft standard for single pin and sleeve devices intended for theatre, stage and studio applications
    		•
    Sub_Brand
    Hubbell Wiring Device-Kellems
    Type
    Panel Mount Receptacle
    Voltage Rating
    600//250
    Wattage
    240,000
