O-Z/Gedney O-Z/Gedney IBC250LS20AC


Description

Industry Description

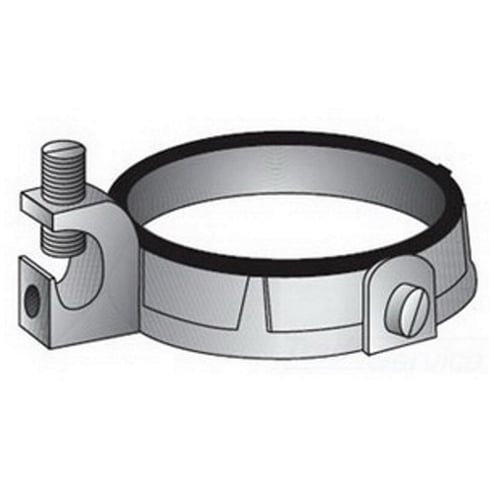

OZ-Gedney Type IBC-LS-AC Insulated Grounding Bushing With Lug, Size: 2-1/2 IN, Malleable Iron Body, Aluminum Lug, Steel Clamping Screw And Set Screws, Finish: Zinc Plated Body, Tin Plated Lug, Zinc Plated Clamping Screw And Set Screws, Connection: Set-Screw, 150 DEG C, 14 - 2/0 AWG Grounding Wire, 3-3/8 IN Outside Diameter, 7/8 IN Width, 2-1/2 IN Turning Radius With Lug, Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1, For Rigid Conduit And IMC

Modified Industry Description

2-1/2 IN GNDG INSUL BSHG W/LUG

Specifications

Application
For Rigid Conduit And IMC
Connection
Set-Screw
Country of Origin
MX
Dimensions
3-3/8 in OD x 7/8 in W
Finish
Zinc Plated
Length1
6.7000
Material
Malleable Iron
Mounting_Type
Threaded
Size
2-1/2
Special Features

  • Insulating liner material is UL V-O rated (self-extinguishing)
  • Lugs not sold separately
  • O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay-in lug grounding lug
  • Setscrew provided with each fitting locks bushing in any desired position
  • Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
  • The plastic liner is tough, it won't chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes
  • They are used to protect wires and cables at entry and exit of conduit and to provide for grounding of the conduit
  • UL listed for use with copper or aluminum grounding conductors
  • Zinc plated clamping screw and set screws, tin plated lug finish
Standard
Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1
Temperature_Rating
302
Type
Type IBC-LS-AC
