Fluke FLUKE I400


Description

Industry Description

Output Cable Length: 1.5 m Maximum Conductor Size: 32 mm Storage Temperature: -20 degrees Celsius to 60 degrees Celsius Operating Temperature: 0 degrees Celsius to 50 degrees Celsius Relative Humidity: 10 degrees Celsius to 30 degrees Celsius: 95 percent 30 degrees Celsius to 40 degrees Celsius: 75 percent 40 degrees Celsius to 50 degrees Celsius: 45 percent Temperature Coefficient: 0.01 X (specified accuracy)/ degrees Celsius (< 18 degrees Celsius or > 28 degrees Celsius) Altitude: Operating: 2000 m Non-operating: 12000 m Dimensions: 150 x 70 x 30 mm Weight: 114 g

Modified Industry Description

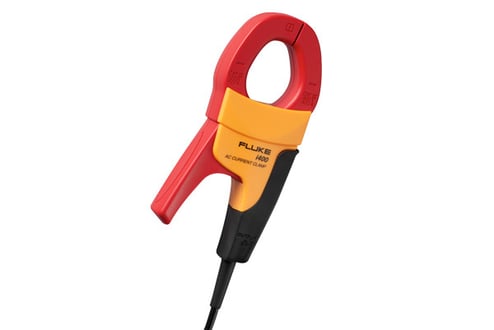

400 AMP AC CURRENT CLAMP

AD Description

Fluke® I400 AC Current Clamp, 600/1000 VAC, 1000 A, CAT III 1000 V/CAT IV 600 V, 12.99 in L

Vendor Description

The Fluke® i400 AC current Clamp is a high safety current clamp for digital multimeters. The current clamp provides accurate current measurements without breaking electric circuits, helping you take measurements safely with industry standard safety ratings.

Specifications

Accuracy
2% + 0.06 A (45-400 Hz) (% reading + floorspec)
Amperage Rating
1000
Application
Measure current in conjunction with your scope or power quality meter
Brand Name
FLUKE
Color
Black/Red/Yellow
Country of Origin
UKN
Diameter
1-1/4
DiameterInches
1.25
Enclosure
Hard Plastic
Material
Plastic
Measuring_Range
1 A - 400 A
Model
Fluke i400
Package_Quantity
1
Repeatability
None
Safety_Rating
CAT III 1000 V/CAT IV 600 V
Special Features

  • 1.5 m L output cable
  • 1000 VAC rms from earth to ground, in compliance with EN61010
  • 750 MCM maximum conductor size (busbar)
  • Basic accuracy 2% + 0.06 A (45 - 400 he) (% reading + floorspec)
  • Hard plastic enclosure
  • Lowest measurable current 1 A
  • Maximum non-destructive current 1000 A
  • Measure current in conjunction
  • Nominal current range - 400 A, continuous current range 1 to 400 A
  • Output level(s) - 1 mA/A
  • Soft non-slippery over mold handle prevents from accidental touching live wiring
  • Specially designed to offer maximum utility in a very compact shape
  • Take accurate current readings without breaking the circuit
  • Useable frequency - 5 Hz - 20 kHz
Standard
CAT IV 600 V, CAT III, 1000 V
Sub_Brand
Fluke
Tip_Material
Hard Plastic
Type
Current Clamp
Voltage Rating
600/1000
