Fluke FLUKE I200S


Description

Industry Description

Fluke Current clamps are the ideal tools to extend the current ranges of Fluke tools. Is a dual range 20A and 200A ac current clamp with voltage output via a safety insulated BNC connector. A dual banana to BNC adapter is supplied to allow to be connected to multimeters with banana inputs.

Modified Industry Description

200 AMP CLAMP, VOLTAGE OUTPUT, BNC

AD Description

Fluke® I200S AC Small Sized Current Clamp, 20/200 A/600 VAC, 40 Hz to 10 kHz

Vendor Description

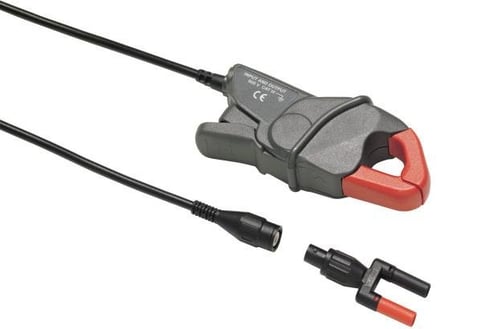

Fluke Current clamps are the ideal tools to extend the current ranges of Fluke tools. The i200s is a dual range 20A and 200A ac current clamp with voltage output via a safety insulated BNC connector. A dual banana to BNC adapter is supplied to allow the i200s to be connected to multimeters with banana inputs.

Specifications

Accuracy
1 % + 0.5 A (48-65 Hz) (% reading + floorspec)
Amperage Rating
200
Application
Measure Current
Brand Name
FLUKE
Color
Red, Gray, Black
Country of Origin
UKN
Diameter
.79
DiameterInches
.79
Enclosure
Hard Plastic
Measuring_Range
0.5 A - 240 A
Model
Fluke i200s
Package_Quantity
1
Repeatability
None
Special Features

  • 0.1 A lowest measurable current
  • 0.1 to 24 A/0.5 to 200 A continuous current
  • 0.82 in jaw opening
  • 100 mV/A/10 mV/A output levels
  • 2 m output cable length
  • 2.7 in height of open jaws
  • 20 mm maximum conductor diameter
  • 20 x 5 mm maximum conductor size (busbar)
  • 240 A maximum non-destructive current
  • Adapter for DMM's
  • Companion to your scope meter, power quality meter or digital multimeter to measure up to 200 A AC
  • Take accurate current readings without breaking the circuit
Standard
CAT III, 600 V
Sub_Brand
Fluke
Tip_Material
Hard Plastic
Type
Current Clamp
