Crouse-Hinds Crouse-Hinds EYD716


Description

Industry Description

2 /12 NPT GRP B THRU MALE/FEMALE CAST IRON DRAIN SEAL

Modified Industry Description

2-/12 NPT GRP B THRU MALE/FEMALE

AD Description

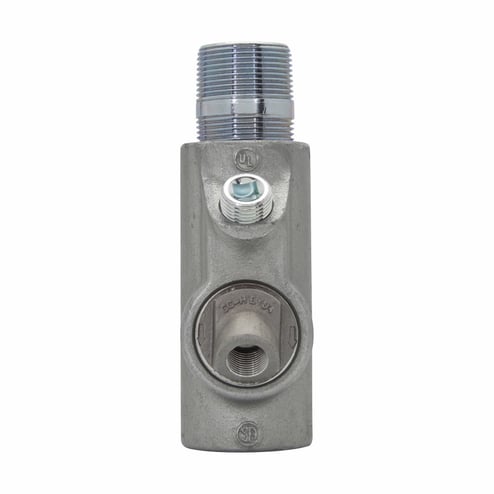

Crouse-Hinds Condulet® EYD716 Dust-Ignitionproof Explosionproof Male/Female Hub Conduit Sealing Fitting With Drain, 2-1/2 in NPT, For Use With Vertical Position Conduit System, Feraloy® Iron Alloy/Ductile Iron, Electro-Galvanized

Specifications

Application
Conduit System
Brand Name
Crouse-Hinds
Connection
Male Threaded, Female Threaded
Country of Origin
US
Enclosure
Class I Div 1 2 Group B C D, Class Ii Div 1 2 Group E F G, Class Iii
Finish
Electro-Galvanized
Material
Feraloy® Iron Alloy/Ductile Iron
Special Features

  • 2-11/16 in turning radius
  • Drain sealing fittings are installed in vertical conduit runs and at low points in conduit systems to prevent accumulation of condensate above seal
  • Drain to provide continuous, automatic drainage of condensate
  • Integral bushings to protect conductor insulation from damage
  • Large openings with threaded closures to provide easy access to conduit hubs for making dams
  • Limit explosions to the sealed OFF enclosure
  • Prevent pre-compression or pressure piling
  • Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures
  • Stainless steel drain, steel removable nipples, Ferroalloy iron alloy and/or steel small closure plug, copper free aluminum or ductile iron closure for drain
  • Taper tapped hubs to ensure ground continuity
Standard
UL 886, CSA C22.2
Sub_Brand
Eaton Crouse-Hinds
Type
Dust-Ignitionproof Explosionproof Male/Female Hub
Width_2
4.0000
