Hubbell Hubbell HBL1284I
Hubbell HBL1284I
Kirby Risk #: 1943264
UPC: 00783585016900, 783585016900, 78358501690
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, PresSwitch, General Purpose AC, Four Way, 20A 120/277VAC, Screw Terminals, Ivory
Modified Industry Description
IVORY 20A 120-277VAC 4W PRESS
AD Description

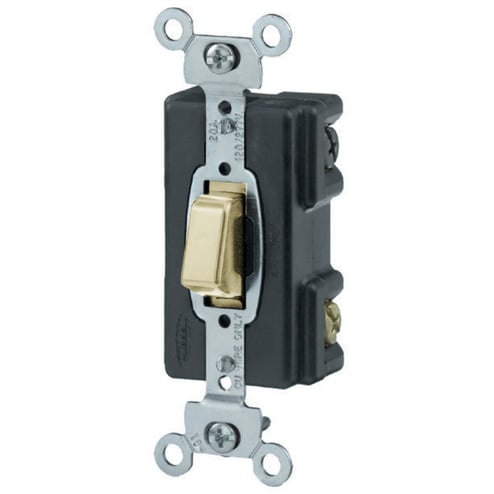

Wiring Device-Kellems PresSwitch® HBL1284I 4-Way Heavy Duty Standard Pushbutton Switch, 120/277 VAC, 20 A, 5540 W Power Rating, 2-Position/DPDT Contact
Specifications
| Action |
Snap
|
|---|---|
| Actuator |
Push Button
|
| Amperage Rating |
20
|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Ivory
|
| Connection |
Terminal Screws
|
| Contact_Configuration |
Two Position
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Mounting |
Mounting Screws
|
| Number_Of_Poles |
2
|
| Operating_Cycles |
10k
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
CSA Only
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
PresSwitches
|
| Voltage Rating |
120/277
|
| Wattage |
5,540
|
