Thomas & Betts Thomas & Betts 54770


Description

Industry Description

Copper C-Tap, Wire Range Main: 4/0-350 Branch 250-6, Plain Finish, Die Code 106H, Die Color Code Black, Number of Crimps 2

Modified Industry Description

COMPRESSION C TAP

AD Description

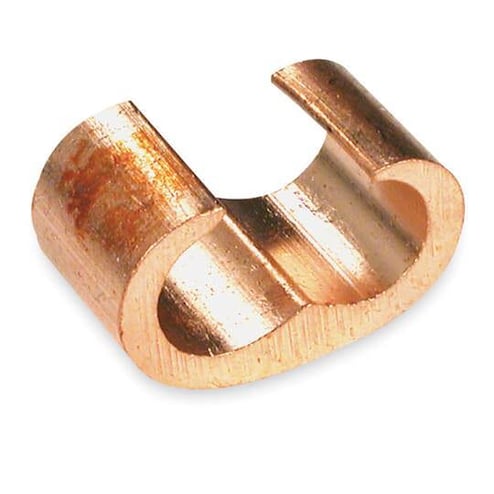

Color-Keyed® 54770 Large Size Compression Connector, C Shape, 1 Taps, 4/0 AWG to 350 kcmil Main/Run, 6 AWG to 250 kcmil Tap, Copper

Vendor Description

Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Specifications

Brand Name
Thomas & Betts
Conductor Type
Copper
Conductor Size
4/0-350
Country of Origin
US
Finish
Plain
Material
Copper
Package_Quantity
25
Special Features

  • Barely larger than conductor insulation once installed
  • Color coded for easy matching with proper die
  • Easy to work with in tight spaces
  • More economical than other taps and split bolts in terms of purchase, inventory, installation time, insulation and maintenance
  • Recommended for TBM14M, TBM15I, TBM12 and 13100A installing die tools
Standard
UL E9809
Sub_Brand
Color-Keyed
Tap_Size
6 AWG to 250 kcmil
Type
Large Size
Voltage Rating
600
