SolaHD SolaHD E050TC
SolaHD E050TC
Kirby Risk #: 1941759
UPC: 00783472002009, 78347200200, 783472002009
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: SolaHD
Description
Industry Description
International Series Control Transformer, 50VA, Volts Primary: 208/240/415, 200/230/400, Volts Secondary: 120/24, 115/23, Frequency: 50/60 HZ
Modified Industry Description
0.050KVA 208/240/415-120/24
AD Description

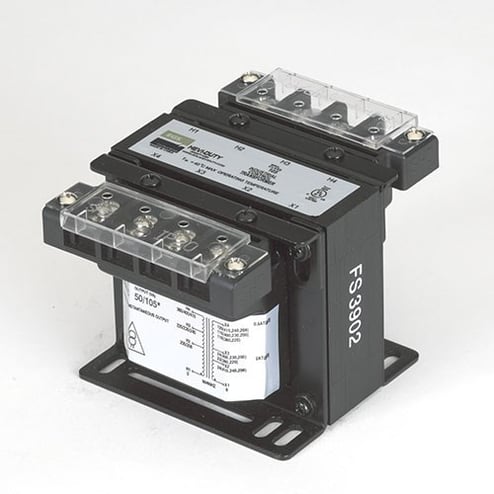

SolaHD E050TC International Encapsulated Non-Ventilated Automation Transformer, 208/240/415 VAC Primary, 24/120 VAC Secondary, 0.05 kVA Power Rating, 60 Hz, 1 Phase
Vendor Description
Electromagnetic control components demand inrush currents up to 10X the transformers nominal rating without sacrificing secondary voltage stability beyond practical limits. The international Series transformers fully comply with IEC and NEMA standards and are available with IEC touchproof covers (IP20).
Specifications
| Brand Name |
SolaHD
|
|---|---|
| Connection |
Copper lead wire terminations
|
| Country of Origin |
VN
|
| Enclosure |
NEMA 3R
|
| Frequency_Rating |
50/60
|
| Insulation |
105
|
| KVA_Rating |
0.05
|
| Maximum_Amperage_Rating |
104/52 A and 208/104 A
|
| Maximum_Input_Current |
104.0/52.0
|
| Maximum_Output_Current |
208.0/104.0
|
| Mounting |
Heavy Gauge Steel Mounting Plate
|
| Number_Of_Channels |
240 x 480 Volt Primary
|
| Phase |
1
|
| Power_Factor |
0.5
|
| Power_Rating |
0.05
|
| Primary_Voltage |
200 to 415
|
| Processor |
120/240 Volt
|
| Secondary_Voltage |
23/120
|
| Special Features |
|
| Standard |
cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66
|
| Sub_Brand |
SolaHD
|
| Type |
Encapsulated
|
| Wattage |
25k
|
