Hubbell Hubbell HBL4779VY
Hubbell HBL4779VY
Kirby Risk #: 1936949
UPC: 783585236964, 78358523696, 00783585236964
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

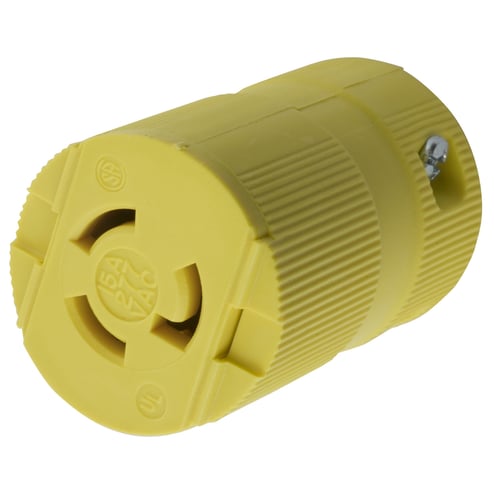

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Valise,Female Connector Body, 15A 277V AC, 2-Pole 3-Wire Grounding, L7-15R,Screw Terminal, Yellow
Modified Industry Description
LOCKING FEMALE CONN NEMA L7-15R
AD Description
Wiring Device-Kellems Twist-Lock® Valise® HBL4779VY Female Grounding Standard Locking Connector, 277 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Conductor Range |
#14AWG - #12AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite/Nylon
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
NEMA L7-15R
|
| Number Of Conductors |
3-Wire Grounding
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Female Grounding Standard
|
| Voltage Rating |
277
|
