Burndy Burndy YH6C6CWC


Description

Industry Description

Cu H-Tap Crimpit W/Black Cover Kit, 6-10 Code & Flex(Main), 6-14 Code & Flex(Tap), Tin Plated, Orange.

AD Description

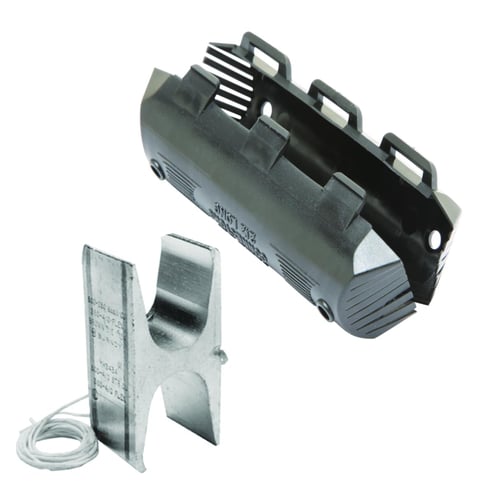

BURNDY® CRIMPIT™ YH6C6CWC Type YH Compression H-Tap Connector With Black Flame Retardant Cover, Figure H, 1 Taps, 10 to 6 AWG Main/Run, 14 to 6 AWG Tap, Copper

Specifications

Application
For Used To Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations
Country of Origin
US
Finish
Tin Plated
Length1
0.6000
Material
Copper
Special Features

  • 6, 8, 10 AWG conductor run size
  • 6, 8, 12, 10, 14 AWG tap size
  • All (B/B, B/I, I/B, I/I) combinations acceptable each connector has many copper cable combination applications allowing maximum flexibility for the design and installation of a system
  • Balance may be used or left empty
  • Color code on the connector matches installation die - provides matched system for fast and easy installation
  • Die index embossed on connector after completion of crimp
  • For use with Y35, Y750 tool, UBGRT die, y46 tool and UBGRT die with puadp-1 adapter
  • Provides maximum design and installation flexibility
  • Recommended flame retardant type CFFR insulating covers meet oxygen index 28 and UL94 V-0 requirements
  • Simplifies installation, reducing installed cost
  • Tap grooves function independently from each other
  • Third hand constrains conductors while installer completes crimp, included with each connector
  • Use of one tap is required
Standard
UL 486A-486B
Sub_Brand
CRIMPIT
Type
Compression Taps
Voltage Rating
35,000
