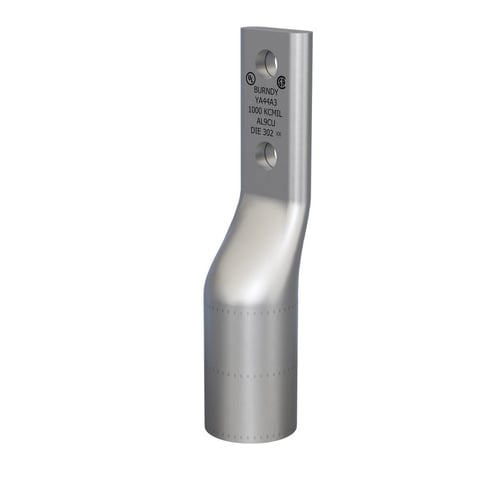

Burndy Burndy YA44A3


Description

Industry Description

Aluminum Compression Lug, 2 Hole w/o Inspection Window, 1000 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Al/Cu Rated, Tin Plated.

AD Description

BURNDY® HYLUG YA44A3 YA-A 2-Hole Compression Lug, 1000 kcmil Aluminum/Copper Conductor, Die Code: 302, 1/2 in Stud, Aluminum

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Specifications

Application
Wire Termination
Color
Brown
Conductor Type
Aluminum/Copper
Conductor Size
1000
Country of Origin
US
Length1
7.7600
Material
Aluminum
Series
YA-A
Special Features

  • 1000 kcmil stranded conductor size
  • 1111 flex (Class G, H, I, M) size, 1111 (2750/NO 24) DLO size, 1000 kcmil copper stranded conductor
  • Color coded end caps inserted in barrel end
  • Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps
  • Copper/Flex conductor
  • Electro tin plated
  • Factory prefilled with PENETROX® oxide inhibiting compound
  • For aluminum and copper conductors
  • Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection
  • Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection
  • Provides a quality electrical dual connection
  • Provides durable long lasting corrosion resistance
  • Provides easy cable insertion
  • Provides easy identification and tooling recommendation for a proper compression which forms a homogeneous mass resulting in an excellent electrical connection
  • Straight tongue angle
  • These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads
  • Type YA-A 2-hole pads inhibit connector rotation and increase area contact
  • Without inspection window
Standard
UL 486A-486B
Sub_Brand
TERMINALS, HYLUG
Temperature_Rating
90
Type
2-Hole
Voltage Rating
600 VAC to 35 kV
