Burndy Burndy YA2CL2NT14


Description

Industry Description

CU Compression Terminal Code Conductor, Narrow Tongue/Beveled Entry, 2 Hole/W/InspWindow, #2AWG, 600V-35kV, 1/4" Stud, 0.63 Spacing, STRD bbl, Tin - Electro Plated.

AD Description

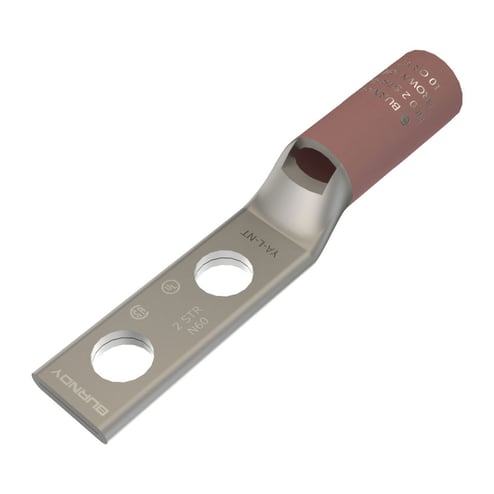

BURNDY® HYLUG YA2CL2NT14 YA-L-2NT 2-Hole Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, Die Code: 10, 1/4 in Stud, Copper

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions.

Specifications

Application
For Code Conductor
Country of Origin
US
Length1
2.4700
Material
Copper
Special Features

  • Electro tin plated
  • For tools, die set catalog number and (number of crimps): Mechanical: MD6, OUR840, MD7-34R Tool, (1) W2CVT die, hydraulic: BCT500HS, Y500CTHS Tool, (1) W2CVT die, Y35, Y39, Y750, PAT750 Tool, (1) U2CRT die, Y46 Tool, (1) U2CRT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (2) Y1MRTC installation tool
Standard
UL 486A-486B
Sub_Brand
HYLUG
Type
YA-L-2NT, Code Conductor Standard Barrel Narrow Tongue
Voltage Rating
35,000
