Midwest Midwest U181C1


Description

Industry Description

National Electric Code requires electrical distribution equipment to be rated as “Service Entrance”, wherever electrical power enters a building or other structure. Service entrance products are typically utilized on single-family residences and mobile homes. Midwest Electric offers a broad range of surface mount and pedestal units, factory assembled and wired. Pedestal units come standard with loop feed lugs to reduce installation time and labor expense. Service Entrance equipment is made of heavy, galvanized G-90 steel, preventing corrosion and fading.

AD Description

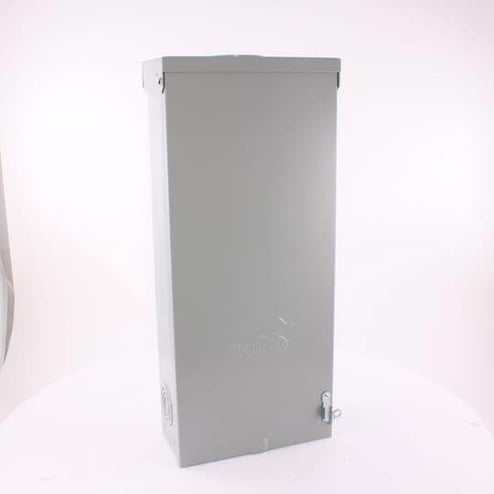

Midwest® GE U181C1 Unmetered Power Outlet Pedestal, 120/240 VAC, 150 A, 1 Phase

Vendor Description

National electric code requires electrical distribution equipment to be rated as "service entrance", wherever electrical power enters a building or other structure. Service entrance products are typically utilized on single family residences and mobile homes. Midwest Electric offers a broad range of surface mount and pedestal units, factory assembled and wired. Pedestal units come standard with loop feed lugs to reduce installation time and labor expense. Service Entrance equipment is made of heavy, galvanized G-90 steel, preventing corrosion and fading.

Specifications

Amperage Rating
150
Country of Origin
UKN
Length1
22.0000
Phase
1
Special Features

  • 200 or 125 A continuous duty meter socket with meter guides and reinforced jaws for ring and ringless type sockets
  • All GFCI Duplexes are listed as weather resistant and tamper resistant as required by 2008 NEC in Article 406.8 and 406.11
  • All terminals accept copper or aluminum wire for added installation flexibility
  • Doors have padlock provision to prevent unauthorized entry
  • Factory wired loop feed lugs
  • Four additional breaker spaces per head
  • Heavy galvanized G90 16 ga steel, with highest quality electro deposition finish, resists corrosion and fading
  • Hub provision
  • LCBS, LCTL load center
  • Locking hasp for utility seal on post covers
  • No loop feed
  • One head
  • Provide circuit protection
  • Rated NEMA 3R - weather proof equipment
  • Removable post door allows lay in wiring 200 A
  • Rolled edge post bottoms to protect service cable
  • Series, parallel wiring configuration
  • Supplied with 12 to 2 copper/aluminum equipment ground lug
  • Utility meter socket compartment barrier from breaker mains for utility power protection
Standard
UL Listed
Type
Unmetered Power Outlet
Voltage Rating
120/240
