Hubbell Hubbell PW2EEBC

Name: Hubbell PW2EEBC
Brand: Hubbell
SKU: 1918882
Price: 19.17 USD
Availability: InStock

Hubbell PW2EEBC

Kirby Risk #: 1918882

UPC: 00783585090665, 783585090665, 78358509066

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Hubbell

Description

Industry Description

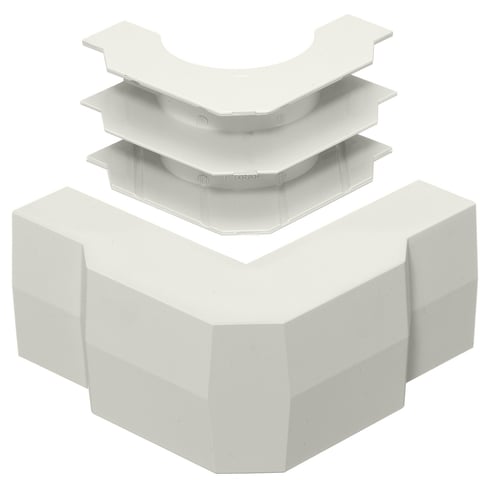

Hubbell Wiring Device Kellems, Non-Metallic Raceway, Latching WallTrak,WALLTRAK2, Base and Cover, External Elbow

Modified Industry Description

NON METALLIC RACEWAY EXTERNAL EL

AD Description

Wiring Device-Kellems PW2EEBC Non-Metallic Standard External Elbow With Base, Cover, 1-1/4 in Bend Radius, 1.6 sq-in

Application	External Elbow Base and Cover
Brand Name	Hubbell
Construction	Extruded
Country of Origin	US
Finish	Office White
Knockouts	None
Material	Non-Metallic
Nominal_Cross_Section	1.60 Square Inches
Non_Hazardous_Location	Non-Hazardous
Special Features	-25.6 to 158 deg F operating temperature 300 lb crush resistance 5 ft-lb impact resistance Boxes have three cut-aways that can be utilized with WALLTRAK®, LanTrak® and Premisetrak® (latching) systems Boxes utilize Hubbell® KP plates or iSTATION™ modules and bezels Eliminates need to order three separate boxes and reducing inventory requirements Extruded construction Full capacity in-line boxes eliminate the need to de-rate the wire fill capacity due to the intrusion of devices into the raceway channel NEMA 1 rated enclosure
Standard	UL 5A
Sub_Brand	Hubbell Wiring Device-Kellems
Type	PW2 WallTrak (Latching) Series
Width_2	6.0180
Width_3	6.0180
