Burndy Burndy YAV26L2TC14FX
Burndy YAV26L2TC14FX
Kirby Risk #: 1915162
UPC: 00781810035733, 781810035733, 78181003573
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

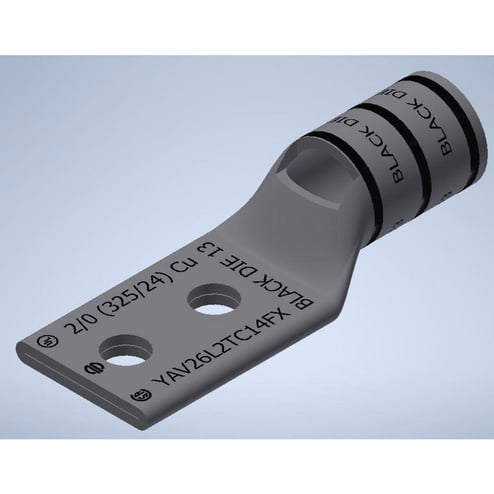

Copper Compression Lug, 2 Hole w/ Inspection window, 2/0 Flex, 1/4" Stud, 5/8" Stud Hole Spacing, Short Barrel, Tin Plated.
Modified Industry Description
2/0 AWG RED COPPER COMPRESSION LUG, 2 HOLE W/ INSPECTION WINDOW, 1/4 IN STUD, 5/8 IN STUD HOLE SPACING, SHORT BARREL
AD Description
BURNDY® HYLUG YAV26L2TC14FX YAV-L-2TC-FX 2-Hole Compression Lug With Inspection Window, 2/0 AWG Stranded Copper Conductor, Die Code: 13, 1/4 in Stud, Copper
Vendor Description
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Specifications
| Application |
For Flex Conductors
|
|---|---|
| Brand Name |
Burndy
|
| Cable_Size |
2/0 AWG, 2/0 AWG Weld, 325/24, 70 SQ-MM For Class 5 Conductor
|
| Color |
Black
|
| Conductor Material |
Copper
|
| Conductor Size |
2/0
|
| Country of Origin |
US
|
| Material |
Copper
|
| Mounting |
5/8 IN Stud Hole Spacing
|
| Number_Of_Holes |
2
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified
|
| Stud_Size |
1/4
|
| Sub_Brand |
Burndy
|
| Temperature_Rating |
90
|
| Type |
2-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
