Burndy Burndy KVSU34


Description

Industry Description

Tin-plated copper alloy connector with tin plated silicon bronze hardware. Spacer bar separates dissimilar conductors and provides long contact length,Tightening torque:375 in -lb,wrench size:3/4 cross flats.

Modified Industry Description

CBL TAP CONN 4 - 500 KCMIL

AD Description

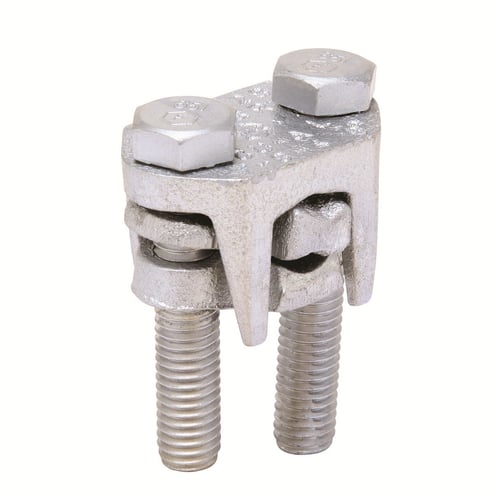

BURNDY® OKLIP™ KVSU34 Compact High Strength Universal Mechanical Connector, 336.4 to 500 kcmil, 4 AWG Solid to 500 kcmil Commercial Aluminum/Solid/Stranded Copper Conductor, 1/2 in, Copper Alloy

Specifications

Application
For All Combinations Of Copper, Aluminum, ACSR, AAAC And 5005
Bolt_Size
1/2
Brand Name
Burndy
Conductor_Range_Main_Primary
500 - 336.4 KCMIL
Conductor_Range_Tap_Secondary
4 AWG Solid - 500 KCMIL
Conductor Type
Commercial Aluminum/Solid/Stranded Copper
Conductor Size
336.4 to 500 kcmil, 4 AWG Solid to 500 kcmil
Country of Origin
MX
Finish
Tin Plated
Material
Copper Alloy
Package_Quantity
1
Special Features

  • 3/4 in cross flats wrench
  • Compact, high strength, tin plated copper alloy 2-piece connector with spacer and tin plated silicon bronze durium hardware
  • Longer peened bolt permits swivel action for easier installation
  • Neoprene ring prevents loss of shorter bolt during installation
  • Recommended for heavy duty dissimilar metal connection applications
  • Spacer separates dissimilar conductors and provides long contact length
  • Use of PENETROX® joint compound recommended with aluminum and ACSR
Standard
RoHS Compatible
Sub_Brand
Burndy
Type
Compact High Strength Universal
