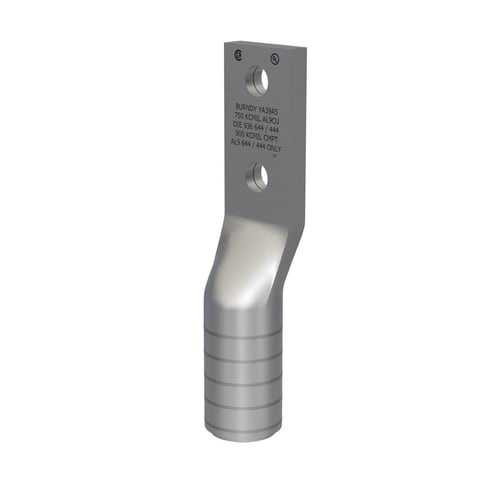

Aluminum Compression Lug, 2 Hole w/o Inspection Window, 750 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Al/Cu Rated, Tin Plated.

Modified Industry Description

AL COMPR LUG 2 HOLE 750 AWG 1/2 STUD

AD Description

BURNDY® HYLUG YA39A5 YA-A 2-Hole Non-Insulated Compression Lug, 700 kcmil Aluminum/Copper Conductor, Die Code: 936, 1/2 in Stud, Aluminum

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY® oxide inhibiting compound.

Specifications

Application
For Aluminum And Copper Conductors
Brand Name
Burndy
Cable_Size
700/750 KCMIL, 900 KCMIL Compact AL
Color
Yellow
Conductor Material
Aluminum - Copper
Conductor Size
700
Country of Origin
US
Insulation
Uninsulated
Material
Aluminum
Mounting
1-3/4 IN Stud Hole Spacing
Number_Of_Holes
2
Package_Quantity
1
Special Features

  • 1.75 in hole center to center distance, 0.63 in hole center to end, 0.77 in hole center to barrel
  • 700 kcmil stranded conductor
  • Color coded end caps inserted in barrel end
  • Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps
  • Designed for heavy duty applications to 35KV
  • Electro tin plated, provides durable long lasting corrosion resistance
  • Internally beveled barrel, provides easy cable insertion
  • Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness
  • Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection
  • Pads inhibit connector rotation and increase area contact
  • Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection
  • Provides a quality electrical dual connection
  • Straight tongue angle
  • The aluminum HYLUG017 terminals are designed for a permanent trouble-free electrical termination
  • These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads
  • Type YA-A aluminum tin plated compression HYLUG017 terminals are dual rated and designed for use on both aluminum and copper conductors from NO 12 sol
  • Used for Y644HSXT, Y81KFT, Y81KFTMBH, PAT81KFT-18V crimpers
  • Without inspection window
  • YA-A terminals are prefilled with PENETROX® and assembled with color coded end caps
Standard
UL486B Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
Stud_Size
1/2
Sub_Brand
Burndy
Temperature_Rating
90
Type
2-Hole Non-Insulated
Voltage Rating
600 VAC to 35 kV
