Burndy Burndy YA38L2NTCFX


Description

Industry Description

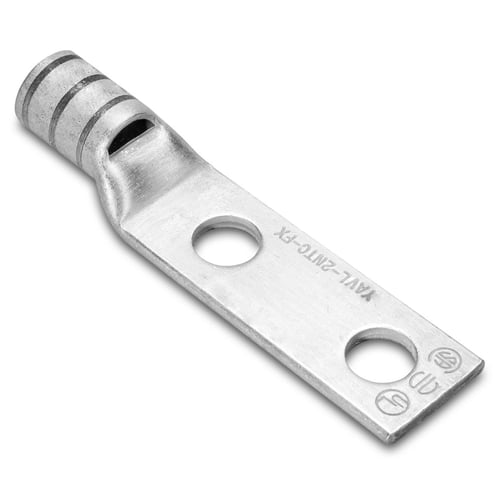

Copper Compression Lug, 2 Hole w/ Inspection Window, 535.3 Flex, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel, Tin Plated.

AD Description

BURNDY® HYLUG YA38L2NTCFX YA-L-2TC-FX 2-Hole Compression Lug With Inspection Window, 535.3 kcmil, Die Code: L99, 1/2 in Stud, Copper

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.

Specifications

Application
Wire Termination
Country of Origin
US
Length1
5.3500
Material
Copper
Special Features

  • Conductor size of 1325/24, 300 SQ-MM for class 5 conductor
  • Electro tin plated
  • Flex conductor
  • For die set catalog number and (number of crimps): hydraulic: Y35, Y39, Y750, PAT750 tool, (2) U38XRT die, Y46 tool, (2) U38XRT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V tool installation tool
Standard
UL 486A-486B
Sub_Brand
HYLUG
Type
Standard Barrel, Tin Plated
Voltage Rating
35,000
