Burndy Burndy YA272LN
Burndy YA272LN
Kirby Risk #: 1892750
UPC: 00781810503225, 78181050322, 781810503225
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

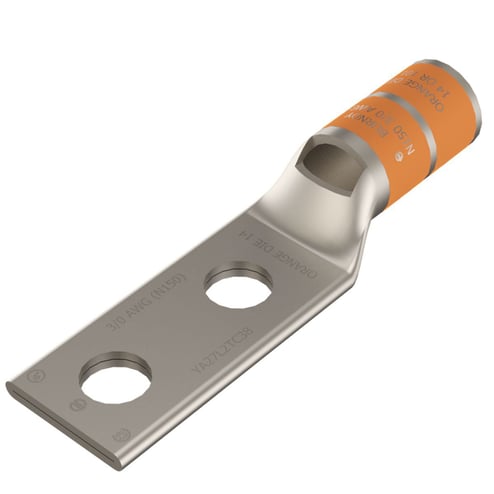

Copper Compression lug, 2 Hole w/ Inspection Window, 3/0 AWG, 1/2" Stud, 1-3/4" Stud hole spacing, Short Barrel, Tin Plated.
AD Description
BURNDY® HYLUG YA272LN YA-2LN 2-Hole Compression Lug With Inspection Window, 3/0 AWG Stranded Copper Conductor, Die Code: 14, 1/2 in Stud, Copper
Vendor Description
BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.
Specifications
| Application |
Wire Termination
|
|---|---|
| Color |
Orange
|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
3/0
|
| Country of Origin |
US
|
| Length1 |
4.4800
|
| Material |
Copper
|
| Mounting |
1-3/4 IN Stud Hole Spacing
|
| Series |
YA-2LN
|
| Special Features |
|
| Standard |
UL 486A-486B
|
| Sub_Brand |
HYLUG
|
| Temperature_Rating |
90
|
| Type |
2-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
