Thomas & Betts Thomas & Betts RD717
Thomas & Betts RD717
Kirby Risk #: 1887864
UPC: 78621082061, 30786210820614, 786210820613
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

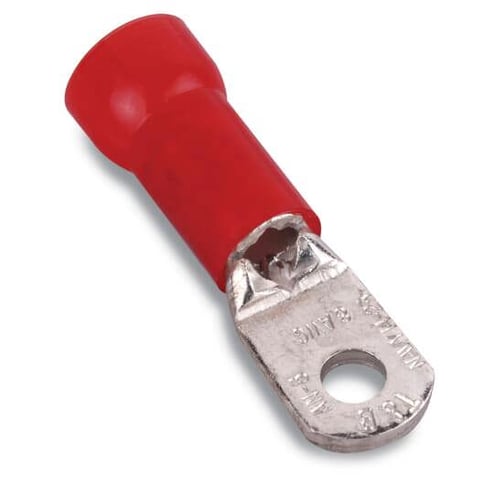

Nylon Insulated Large Ring Terminal, Length 1.54 Inches, Width .46 Inches, Maximum Insulation .340, Bolt Hole 1/4 Inch, Wire Range 8, Color Red, Copper, Tin Plated, 200 Pack
Modified Industry Description
INS NYL RING TERM, 8, 1/4, RED
AD Description
Sta-Kon® RD717 RD Series Insulated Ring Terminal, 8 AWG Conductor, 1.54 in L, Brazed/Overlapped Seam Barrel, Copper, Red
Vendor Description
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Color |
Red
|
| Conductor Size |
8
|
| Country of Origin |
MX
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Package_Quantity |
200
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
1/4
|
| Sub_Brand |
Sta-Kon
|
| Type |
Insulated
|
| Voltage Rating |
600
|
