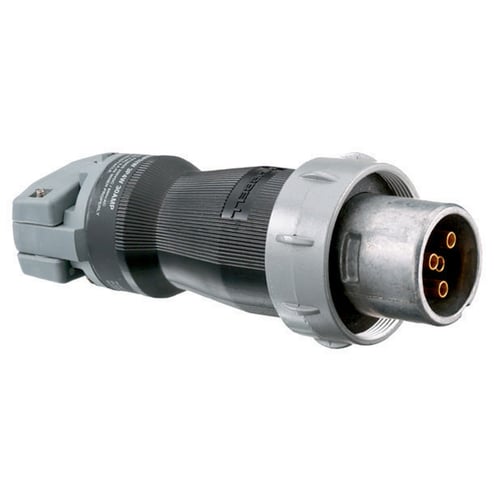

Hubbell Hubbell HBL430PS1W
Hubbell HBL430PS1W
Kirby Risk #: 1885891
UPC: 78358501012, 00783585010120, 783585010120
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, Insulgrip PinandSleeve Devices, Industrial Grade, Male, Plug, 30A 600V AC, 3-Pole 4-Wire Grounding Style 1, Terminal Screws, Gray and Black, Watertight
Modified Industry Description
30A 600V 3 POLE 4 WIRE MALE PIN PLUG
AD Description
Wiring Device-Kellems Insulgrip® HBL430PS1W Heavy Duty Male Standard Watertight Pin & Sleeve Plug, 600 VAC/250 VDC, 30 A, 3 Poles, 4 Wires, Black/Gray
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
High Ampacity Connections
|
| Brand Name |
Hubbell
|
| Color |
Black/Gray
|
| Connection |
Pressure Terminal Screws
|
| Conductor Size |
#10 AWG to #8 AWG
|
| Cord_Type |
All Portable
|
| Country of Origin |
US
|
| Environmental_Conditions |
Watertight
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
#10 AW
|
| Number_Of_Wires |
4
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Watertight Plug
|
| Voltage Rating |
600/250
|
