Description

Industry Description

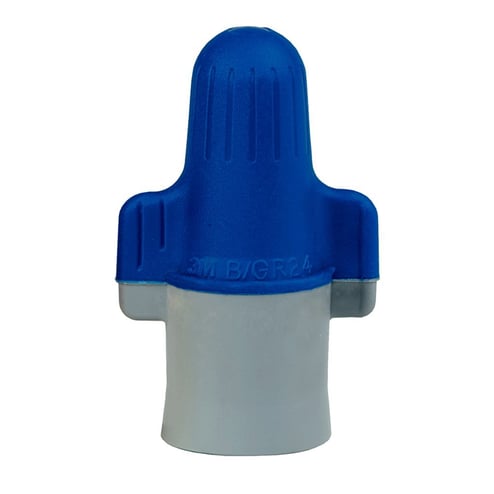

3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible springthat has generous room for expansion and a strong bite for a secure connection. Becauseof their increased wire range, just three Performance Plus wire connectors handle thework of eight standard connectors. And theflexible skirt helps prevent copper exposure for enhanced safety.

Modified Industry Description

250/JUG - BLUE/GRAY SPRING CONNECTOR

Specifications

Brand Name
3M
Color
Blue/Gray
Conductor Range
14-6
Connection
Twist On
Country of Origin
US
Label_Description
3M(TM) PERFORMANCE PLUS WIRE CONNECTOR B/G+BULK, 250 PER CONTAINER, 2000 PER CASE
Material
Spring Steel
Package_Quantity
250
Special Features

  • (4) 14 AWG, (2) 6 AWG, (3) 8 AWG wire combinations
  • 1000 VAC for signs, fixtures or luminaires
  • 250/jug
  • A better bite for a better connection, wires feed into the connector more easily, improving the security of the connection and increasing the level of pull out
  • Corrosion resistant coating
  • Flame retardant
  • Flexible skirts provide safety provides protection against potential shock situations
  • New design allows easier installation, smooth, fast and easy on the hands
  • Polypropylene and thermoplastic elastomer insulation
  • Simplifies selection of the right connector for a wide range of wiring jobs, there's also less inventory to manage and a better chance you'll have the connector you need to do every job
Standard
UL CE IEC and CSA
Sub_Brand
3M
Temperature_Rating
221
Type
Flame Retardant
Voltage Rating
600
Wire_Type
Aluminum/Copper
