Hubbell Hubbell HBL5963VY
Hubbell HBL5963VY
Kirby Risk #: 1881031
UPC: 00783585019604, 783585019604, 78358501960
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Female ConnectorBody, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Yellow, Single Pack, S2
Modified Industry Description
15A 125V CONN YELLOW
AD Description

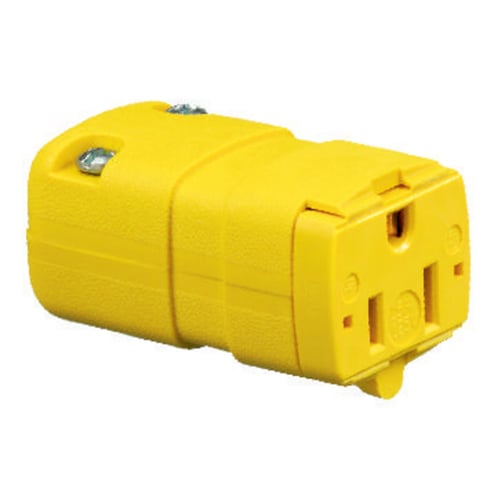

Wiring Device-Kellems Valise® HBL5963VY Female Standard Sized Straight Connector Body, 125 VAC, 15 A, 2 Poles, 3 Wires
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Industrial/Commercial
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Conductor Range |
#14AWG - #12AWG
|
| Connection |
Screw Terminals
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
Insulated Body
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
5-15R
|
| Number Of Conductors |
3-Wire Grounding
|
| Number_Of_Poles |
2
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Type |
Valise
|
| Voltage Rating |
125
|
