Siemens Siemens JXD22B250
Siemens JXD22B250
Kirby Risk #: 1874644
UPC: 78364321288, 783643212886, 00783643212886
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

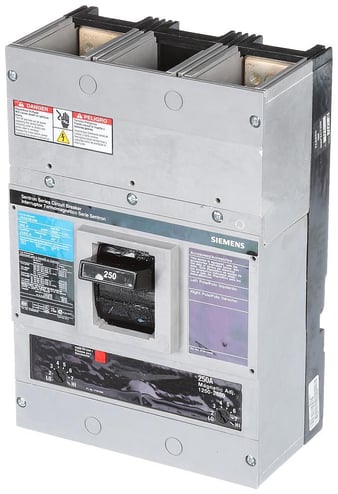

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY. 250A 2-POLE (65KAIC AT 240V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.
Modified Industry Description
2P 250A 240V CB
AD Description
Sentron™ Speedfax™ JXD22B250 Low Voltage Molded Case Circuit Breaker, 240 VAC/250 VDC, 250 A, 65 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Vendor Description
SiemensSentronSeriesCircuit Breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens SentronSeries circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
250
|
| Auxiliary_Contacts |
N/A
|
| Brand Name |
Siemens
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
JD
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
65
|
| Material |
N/A
|
| Number_Of_Poles |
2
|
| Operating_Temperature |
40 Deg C
|
| Phase |
1-Phase
|
| Poles |
2
|
| Special Features |
|
| Standard |
UL 489 Listed, HACR Rated
|
| Sub_Brand |
Siemens
|
| Trip_range |
1250 to 2500
|
| Trip_Type |
Thermal Magnetic
|
| Type |
Low Voltage
|
| Voltage Rating |
240 VAC/250 VDC
|
| Width_2 |
40.0000
|
