Thomas & Betts Thomas & Betts 60571


Description

Industry Description

Two-Way Aluminum Splice Connector, Wire Size 500 kcmil, Die Code 99, Die Color Code Pink

Modified Industry Description

2 WAY ALUM CONN

AD Description

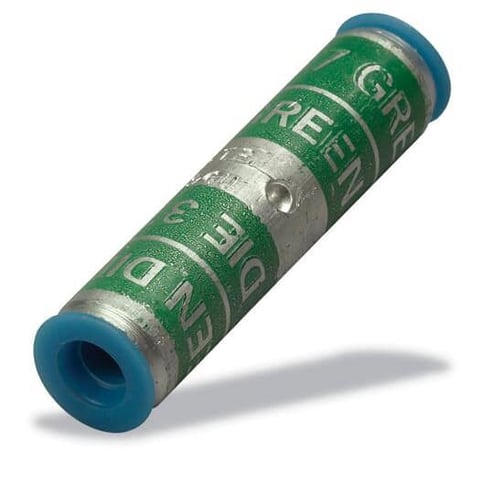

Color-Keyed® 60571 2-Way Standard Barrel Splice Connector, 500 kcmil Aluminum/Copper Conductor, Die Code: 99, 4.97 in L, Aluminum

Vendor Description

Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Specifications

Brand Name
Thomas & Betts
Color
Pink
Conductor Type
Aluminum/Copper
Conductor Size
500
Country of Origin
MX
Die_Code
99
Finish
Tin-Plated
Material
Aluminum
Outside_Diameter
1.28
Package_Quantity
2
Special Features

  • Connectors are pre-filled with oxide inhibitor
  • Connectors supplied with T&B® oxide inhibitor compound in wire bore
  • For aluminum and copper concentric conductors and compact code aluminum strands
  • Manufactured from high conductivity wrought aluminum and electro tin plated
  • Permits aluminum conductors to be spliced to copper or aluminum conductors
Standard
UL E9809
Sub_Brand
Color-Keyed
Temperature_Rating
90
Type
2-Way Standard Barrel
Voltage Rating
600 VAC to 35 kVAC
