NSI NSi L100NB
NSI L100NB
Kirby Risk #: 1861274
UPC: 00662381336705, 662381336705, 66238133670
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

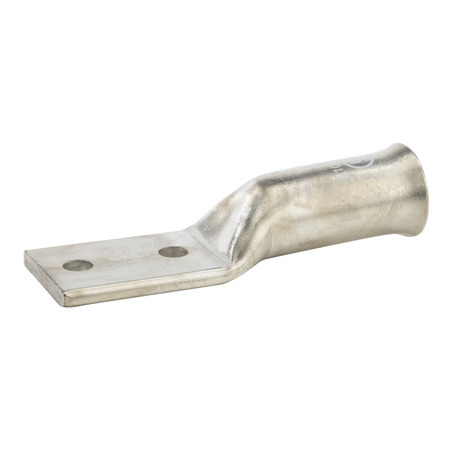

2HoleLong Barrel Copper Compression Lug for Flexible Copper Cable1000 MCM- 1/2" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
Modified Industry Description
1000MCM CU COMPRESS LUG
AD Description
NSI L100NB L-NB Series 2-Hole Compression Lug, 1000 kcmil Stranded Conductor, 1/2 in Stud, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Cable_Size |
1000 MCM (STR)
|
| Color |
White
|
| Conductor Material |
Copper
|
| Conductor Size |
1000
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Mounting |
1/2 Mounting Holes
|
| Number_Of_Holes |
2
|
| Package_Quantity |
1
|
| Size |
L=7.12 - W=2.16 - OD=1.50 - ID=1.15
|
| Special Features |
|
| Standard |
UL486
|
| Stud_Size |
1/2
|
| Sub_Brand |
NSi
|
| Type |
Long Barrel - Two Hole - Belled End
|
| Voltage Rating |
600 V
|
