NSI NSi L10N
NSI L10N
Kirby Risk #: 1861221
UPC: 662381035097, 66238103509, 00662381035097
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

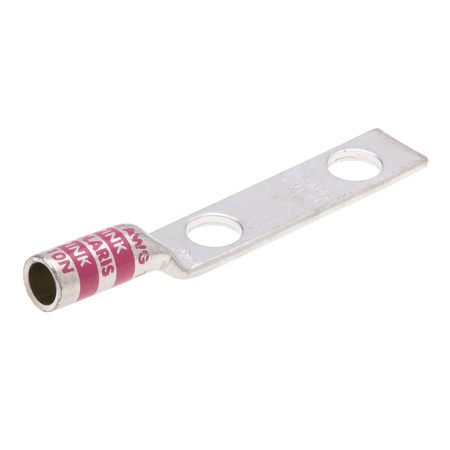

2 Hole Long Barrel Copper Compression Lug 1/0 AWG - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
Modified Industry Description
1/0 CUCOMPRESSION LUG
AD Description
NSI L10N 2-Hole Compression Lug, 1/0 AWG Stranded Conductor, 1/2 in Stud, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Cable_Size |
1/0 AWG (STR)
|
| Color |
Pink
|
| Conductor Material |
Copper
|
| Conductor Size |
1/0
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Mounting |
1/2 Mounting Holes
|
| Number_Of_Holes |
2
|
| Package_Quantity |
1
|
| Size |
L=4.63 - W=.740 - OD=.520 - ID=.390
|
| Special Features |
|
| Standard |
UL486
|
| Stud_Size |
1/2
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
2-Hole
|
| Voltage Rating |
600
|
