Hubbell Hubbell IG8362SA
Hubbell IG8362SA
Kirby Risk #: 1859149
UPC: 783585060965, 00783585060965, 78358506096
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Surge Protective Devices, SPIKESHIELDHospital Grade Surge Suppression Receptacle, 20A 125V, 5-20R, Red
Modified Industry Description
20A125V BLUE HOSP IG/SURGE RCPT
AD Description

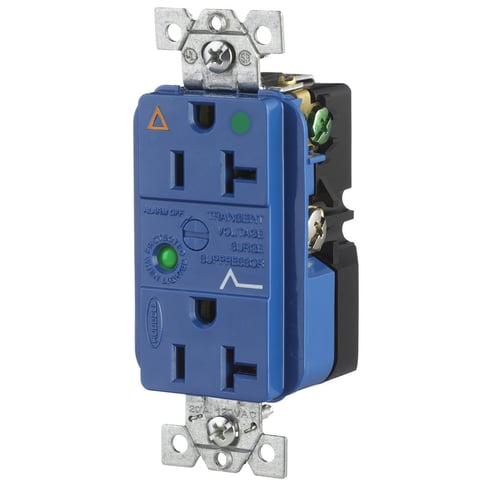

Hubbell® Circuit Guard® SPIKESHIELD® IG8362SA Hospital Grade Surge Suppression Duplex Receptacle With Light and Alarm, 125 VAC, 20 A, 60 Hz, 1 Phase
Vendor Description
Hubbell has the broadest offering of TVSS receptacles in the industry with technology that is unsurpassed. Inside Hubbell TVSS receptacles are two 22mm square disc MOVs providing 240 joules of surge protection for each mode. The nylon component shield protects the printed circuit board from moisture and contaminants. An all-glass PC board provides superior moisture immunity for longer life in humid environments. Conformal coating is provided on the printed circuit board for additional moisture immunity.
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Decorator Duplex with Light and Alarm
|
| Brand Name |
Hubbell
|
| Color |
Blue
|
| Connection |
Terminal Screws
|
| Country of Origin |
CN
|
| Environmental_Conditions |
UL 94 V-2 Flammability
|
| Frequency_Rating |
60
|
| Material |
Nylon
|
| Mounting |
Threaded
|
| Operating_Temperature |
-40 to 60
|
| Outlet |
Straight Blade
|
| Phase |
1-Phase
|
| Response_Time |
5 ns
|
| Size |
1.75 in W x 1.13 in D
|
| Special Features |
|
| Standard |
UL 1449 3rd Edition, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type_Of_Indicators |
LED
|
| Type |
Hospital Grade
|
| Voltage Rating |
125
|
