Thomas & Betts Thomas & Betts 54814
Thomas & Betts 54814
Kirby Risk #: 1854832
UPC: 78621054814, 30786210548143, 786210548142
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Copper Two-Way Splice, Long Barrel, Wire Size 300 kcmil, Length 3.5 Inches, Diameter 0.87 Inches, Tin Plate, Die Code 66, Die Color Code White
Modified Industry Description
300MCM 2WAY COP CONN
AD Description

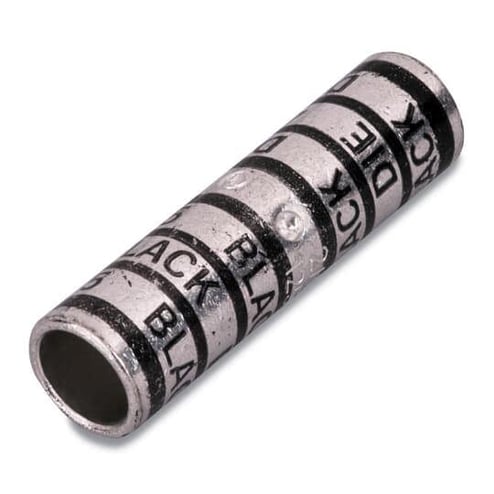

Color-Keyed® 54814 2-Way Long Barrel Splice Connector, 300 kcmil Copper Conductor, Die Code: 66, 3-1/2 in L, Copper
Vendor Description
Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.
Specifications
| Application |
Applications certified to 600 V and recommended up to 35 kVÂ¥
|
|---|---|
| Brand Name |
Thomas & Betts
|
| Color |
White
|
| Conductor Range |
300 - 300 kcmil
|
| Conductor Type |
Copper
|
| Conductor Size |
300
|
| Country of Origin |
MX
|
| Die_Code |
66
|
| Finish |
Tin-Plated
|
| Insulation |
None
|
| Material |
Copper
|
| Outside_Diameter |
0.87
|
| Package_Quantity |
10
|
| Special Features |
|
| Standard |
UL E9809, CSA 4503
|
| Sub_Brand |
Color-Keyed
|
| Type |
2-Way Long Barrel
|
| Voltage Rating |
600
|
