Thomas & Betts Thomas & Betts 8423


Description

Industry Description

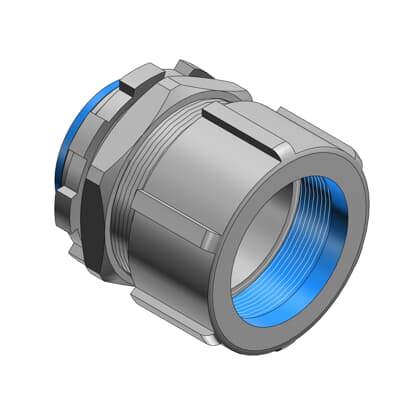

1-1/4 Inch Threadless Connector, Malleable Iron with Nylon Insulator for Use with Rigid/IMC Conduit

Modified Industry Description

1 1/4 IN INSULATED THREADLESS COMPRESSION CONNECTOR STEEL

AD Description

T&B® 8423 Insulated Threadless Conduit Connector, 1-1/4 in Trade, For Use With IMC/Rigid Conduit, Malleable Iron, Electro-Plated Zinc/Chromate Coated

Vendor Description

T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Specifications

Application
To Connect and Effectively Bond Threadless Rigid Metal Conduit/Intermediate Metal Conduit to a Box or Enclosure, or to Couple Ends of Threadless Conduit
Brand Name
Thomas & Betts
Color
Natural
Country of Origin
US
Diameter
2-3/8
Finish
Electro-Plated Zinc/Chromate Coated
Material
Malleable Iron
Special Features

  • 11/16 in L thread
  • A split steel ring with diagonal serrations grips the conduit and bites into it for positive ground
  • Insulation helps to guarantee continuity of service with protection of the conductor at the critical point the fitting bushing
  • Makes a permanent connection and eliminates the need for cutting a thread on the conduit
  • Nylon insulator
Standard
UL E23018, CSA
Sub_Brand
Thomas & Betts
Trade_Size
1-1/4
Type
Insulated Threadless
Width_2
5.3000
Width_3
4.8100
