Thomas & Betts Thomas & Betts E10261
Thomas & Betts E10261
Kirby Risk #: 1853037
UPC: 30786210829600, 78621082960, 786210829609
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

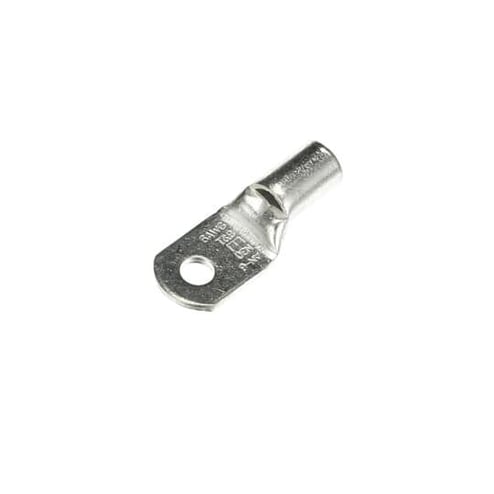

Non-Insulated Tubular Ring Terminal, Length 1.26 Inches, Width .49 Inches, Bolt Hole #10, Wire Range 6/6AN, Copper, Tin Plated
Modified Industry Description
6 AWG, 10 BOLT - TUBULAR RING TERMINAL, NON INSULATED
AD Description
Sta-Kon® E10261 E Series Non-Insulated Ring Terminal, 6/6 AN AWG Conductor, 1.26 in L, Tubular Barrel, Copper, Metallic
Vendor Description
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Color |
Metallic
|
| Conductor Range |
6-5
|
| Conductor Size |
6/6 AN
|
| Country of Origin |
MX
|
| Finish |
Tin Plated
|
| Insulation_Material |
Non Insulated
|
| Material |
Copper
|
| Package_Quantity |
200
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
#10
|
| Sub_Brand |
Sta-Kon
|
| Type |
Non-Insulated
|
| Voltage Rating |
600
|
