Intermatic Intermatic K4321C
Intermatic K4321C
Kirby Risk #: 1852643
UPC: 50078275002031, 078275002036, 00078275002036, 07827500203
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Intermatic
Description
Industry Description
The 120V 50/60Hz 1800W "T" NEMA3R WALPLT FIX The K4000 Series Fixed Position Mounting Photo Controls are thermal-type photo controls that fit into a standard outlet box, post lamp, or wall pack. The photo controls provide dusk-to-dawn lighting control, along with a delay action, which eliminates loads switching OFF due to car headlights and lightning. The thermal-type controls feature a cadmium sulfide photocell and a sonic-welded polycarbonate case and lens to seal out moisture. The design utilizes a dual temperature compensating bi-metal and composite resistor for reliable long life operation over ambient temperature extremes.
Modified Industry Description
1800W 120V - T NEMA 3R WALPLT FIX PHOTOCELL
AD Description

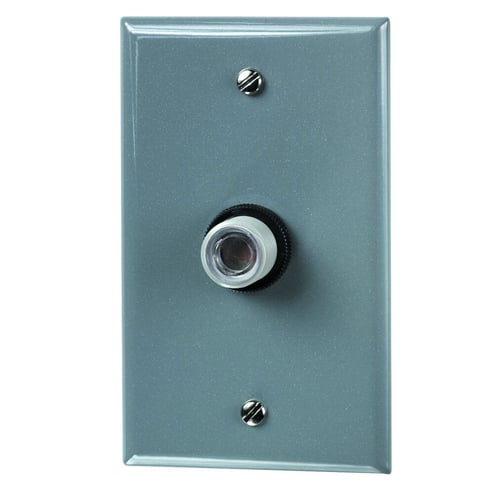

Intermatic® K4321C K4000 Automatic Switching In-Wall Thermal Photocontrol, 120 VAC, 1800 W Tungsten, 1000 VA Ballast, Button Fixed Mount, Polycarbonate
Vendor Description
The K4000 Series Fixed Position Mounting Photo Controls are thermal type Photo Controls that fit into a standard outlet box, post lamp, or wall pack. The Photo Controls provide dusk-to-dawn lighting control along with a delay action, which eliminates loads switching OFF due to car headlights and lightning. The thermal type controls feature a cadmium sulfide photocell and a sonic welded polycarbonate case and lens to seal out moisture. The design utilizes a dual temperature compensating bimetal and composite resistor for reliable long life operation over ambient temperature extremes.
Specifications
| Application |
Swivel Attacment
|
|---|---|
| Ballast_Power_Rating |
1000
|
| Brand Name |
Intermatic
|
| Color |
Gray
|
| Connection |
Color Coded Lead
|
| Country of Origin |
MX
|
| Frequency_Rating |
50/60
|
| Mounting |
Button Fixed Mount
|
| Mounting_Type |
Fixed
|
| Operating_Temperature |
-40 to +158 DEG F -40 to +70 DEG C
|
| Power_Consumption |
1
|
| Sensitivity |
1-5 FC ON, 3-15 FC OFF
|
| Sensor |
Thermal Type Photo Control (Cadmium Sulfide)
|
| Size |
1-13/16 LENGTH X 1-5/16 WIDTH X 1-9/16 DEPTH IN, 4.6 LENGTH X 3.3 WIDTH X 4 DEPTH CM
|
| Source |
Automatic Switching
|
| Special Features |
|
| Standard |
CSA, CAS Approval, C/US Approval, Title CA 20 Listed, California Title 24 Compliant
|
| Sub_Brand |
Intermatic
|
| Supply_Voltage |
120
|
| Tungsten_Current_Rating |
15
|
| Tungsten_Watts |
1800
|
| Type |
Thermal Type Photo Cell
|
| Voltage Rating |
120
|
| Wattage |
1800
|
