Burndy Burndy YGHR29C58


Description

Industry Description

Copper Compression Connector, 4/0 AWG(Str)-250 kcmil, 5/8" Ground Rod.

AD Description

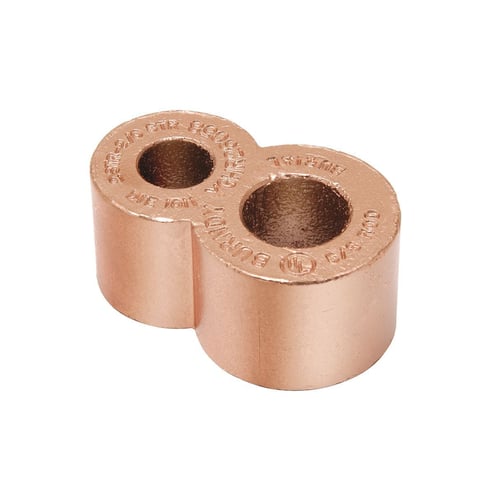

BURNDY® HYTAIL™ HYGROUND® YGHR29C58 Type YGHR-C High Strength Irreversible Compression Connector, 4/0 AWG to 250 kcmil Max Run/Tap, 5/8 in Rod, Figure 8 Shape, Copper

Specifications

Application
For Direct Burial In Earth Or Concrete
Conductor Size
4/0 AWG, 250 KCMIL
Country of Origin
US
Length1
0.8800
Material
Copper
Size
2.14 IN Height X 0.88 IN Length
Special Features

  • 4/0 AWG to 250 kcmil stranded conductor size
  • Acceptable for direct burial in earth and concrete
  • Accommodates a wide range of copper conductors to ground rod
  • High torque strength ground rod connectors
  • Prefilled with PENETROX and strip sealed
  • Tools, die set catalog number and (number of crimps): Y35, Y39, Y750, PAT750 tool, PU998 die, (1) U1011 die, (2) HYPRESS: Y45 tool, PU998 die with PT6515 adapter, (1) S1012 die, (2) Y46 tool, PU998 die with PUADP-1 adapter, (1) P1011 die
Standard
UL467;IEEE 837
Sub_Brand
HYGROUND, HYTAIL
Type
Taps
