Burndy Burndy YA27L3
Burndy YA27L3
Kirby Risk #: 1847794
UPC: 00781810553831, 781810553831, 78181055383
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

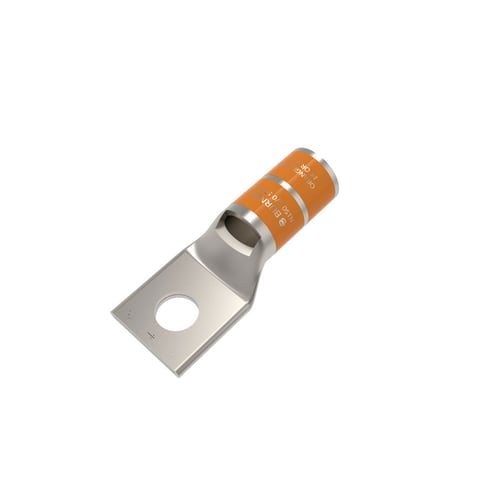

Copper Compression Lug, 1 Hole w/ Inspection Window, 3/0 AWG, 5/16" Stud, Short Barrel, Tin Plated.
Modified Industry Description
3/0AWG COP 1H LUG
AD Description
BURNDY® HYLUG YA27L3 YA-L 1-Hole Compression Lug With Inspection Window, 3/0 AWG Stranded Copper Conductor, Die Code: 14, 5/16 in Stud, Copper
Vendor Description
BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.
Specifications
| Application |
For Code Conductor
|
|---|---|
| Brand Name |
Burndy
|
| Cable_Size |
3/0 AWG
|
| Color |
Orange
|
| Conductor Material |
Copper
|
| Conductor Size |
3/0
|
| Country of Origin |
US
|
| Material |
Copper
|
| Number_Of_Holes |
1
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
|
| Stud_Size |
5/16
|
| Sub_Brand |
Burndy
|
| Temperature_Rating |
90
|
| Type |
1-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
